板状燃料组件流道部分堵塞的安全边界研究

丁文杰 王少华 高娇 郭海兵 马纪敏 刘志勇

丁文杰, 王少华, 高娇, 等. 板状燃料组件流道部分堵塞的安全边界研究[J]. 强激光与粒子束, 2022, 34: 056003. doi: 10.11884/HPLPB202234.210508
引用本文: 丁文杰, 王少华, 高娇, 等. 板状燃料组件流道部分堵塞的安全边界研究[J]. 强激光与粒子束, 2022, 34: 056003. doi: 10.11884/HPLPB202234.210508
Ding Wenjie, Wang Shaohua, Gao Jiao, et al. Safety boundary of flow channel partial blockage in plate-type fuel assembly[J]. High Power Laser and Particle Beams, 2022, 34: 056003. doi: 10.11884/HPLPB202234.210508
Citation: Ding Wenjie, Wang Shaohua, Gao Jiao, et al. Safety boundary of flow channel partial blockage in plate-type fuel assembly[J]. High Power Laser and Particle Beams, 2022, 34: 056003. doi: 10.11884/HPLPB202234.210508

板状燃料组件流道部分堵塞的安全边界研究

doi: 10.11884/HPLPB202234.210508
基金项目: 中国工程物理研究院核物理与化学研究所发展项目(XX0206)
详细信息
    作者简介:

    丁文杰,dwjcaep@163.com

  • 中图分类号: TL33

Safety boundary of flow channel partial blockage in plate-type fuel assembly

  • 摘要: 为掌握板状燃料组件内多个流道堵塞下的流动换热特性,获得流动堵塞致传热恶化的触发边界,以提高板状燃料反应堆的运行安全性,以典型板状燃料堆JRR-3M的标准燃料组件为对象,基于定性分析将流道堵塞事故分为非相邻流道堵塞与相邻流道堵塞两类,采用计算流体动力学软件ANSYS Fluent对两类流道堵塞事故下的流动换热特性进行模拟。模拟结果表明:非相邻流道完全堵塞或相邻流道最大堵塞率低于35%,流道内不会发生局部沸腾且燃料最高温度低于许用温度。基于上述结果,可确定JRR-3M反应堆在堵流事故下的安全运行边界。
  • There is an opinion that the most sensitive to the effects of pulse disturbances are the technical systems incorporating semiconductor devices, while high-voltage equipment is immune against them. This conclusion is based on the results of tests of high-voltage equipment when the operating voltage has not been simulated (power off). But even short duration voltage pulses, such as those created by HEMP or HPEM threats, are capable to initiate a spark short circuit. This short circuit can outgrow into an arc flashover under the effect of the operating voltage. As a result, the destruction of insulators and the failure of the high-voltage equipment can take place. Such effects can lead to catastrophic phenomena in power supply systems. Therefore, it is important to investigate flashovers and damages of power supply system elements due to high voltage pulses with power on and power off. A set of publications were devoted to the investigation. For example, the results of investigation of flashovers and damages of power line insulators due to high voltage pulses with power on and power off are described in Refs.[1-4]. These investigations have shown that high-voltage insulators could be destroyed as a result of joint action of a pulse disturbance and operation voltage of a power line.

    However, insulators are not the most important elements of power systems. High-voltage transformers are much more important and expensive elements. Our thoughts concerning ways of transformer test to joint action of pulse disturbance and operating voltage of a high-voltage power line are presented in this article.

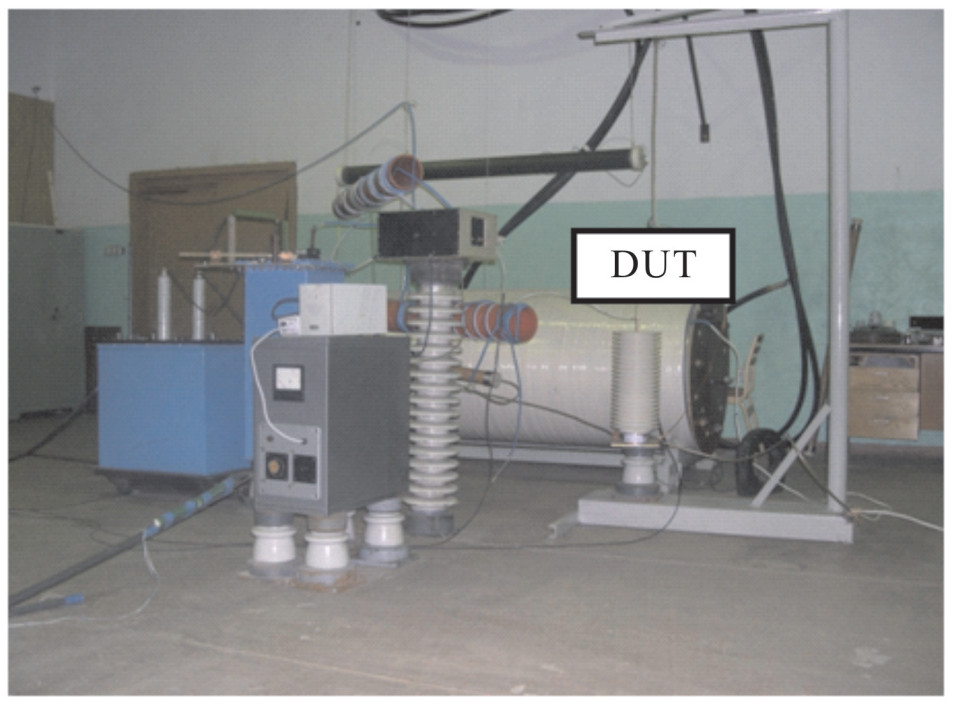

    This test can be performed using the equipment developed for testing insulators of high-voltage power supply lines. General view of the experimental setup is shown in Fig. 1. The setup consists of two simulators, namely, a high-voltage pulse simulator and a power line operating voltage simulator.

    Figure  1.  General view of the experimental setup

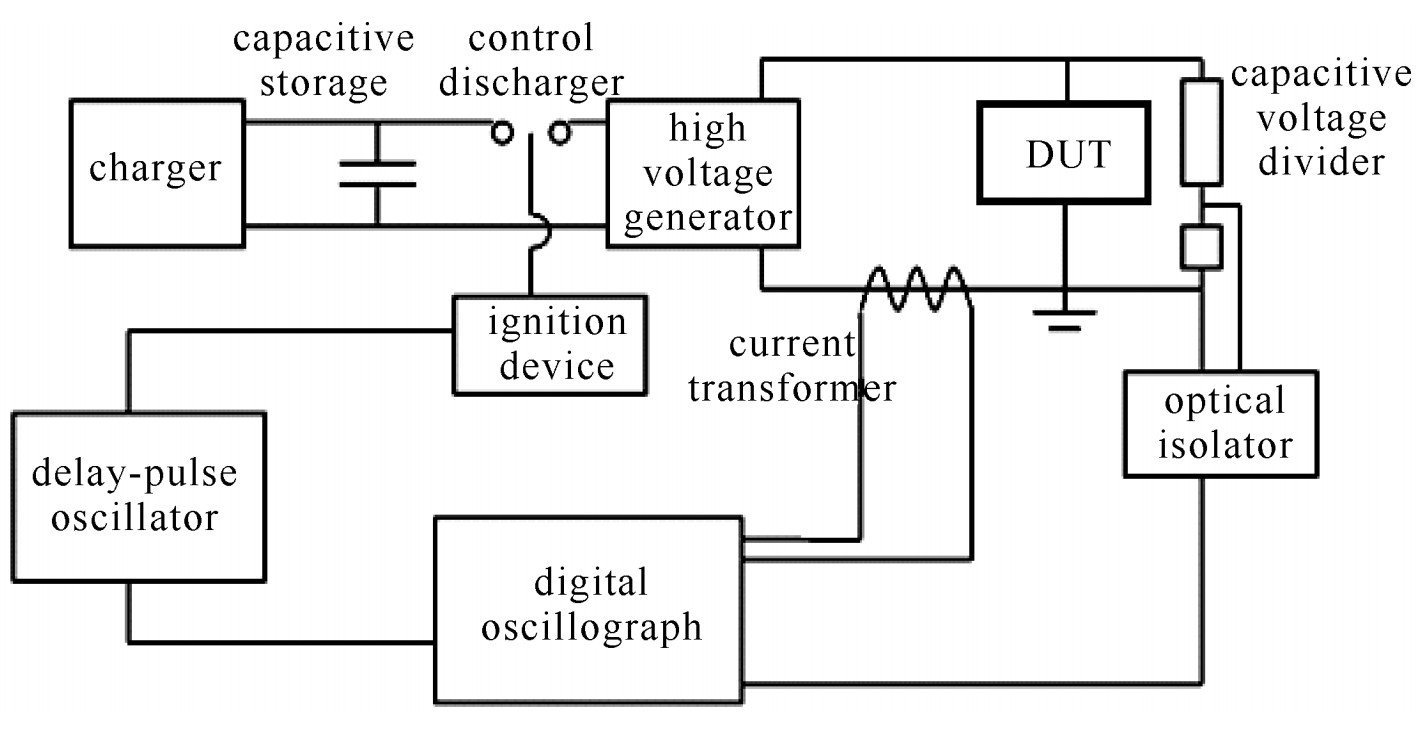

    A block-diagram of the high-voltage pulse simulator is presented in Fig. 2. Basic elements of the simulator are: charger, capacitor store with controlled discharger, high-voltage generator, generator of delayed pulses (delayed-pulse oscillator), and ignition device.

    Figure  2.  Block-diagram of the high-voltage pulse simulator

    A high-voltage pulse being formed by this simulator acts onto a device under test (DUT).Capacitive voltage divider, current transformer, optical isolator, as well as digital oscilloscope are used for measuring parameters of the simulated pulses. The charger is intended to charge the capacitive storage up to a certain voltage. By changing this voltage from 3 kV up to 20 kV, it is possible to change amplitude of a high-voltage pulse from 60 kV up to 400 kV.

    After start of the controlled discharger the capacitor storage is discharging on the high-voltage generator, which forms a pulse with necessary parameters.

    The generator of delayed pulses controls the work of the ignition device and starts the digital oscilloscope. Besides, it controls the work of the ignition system of the power line voltage simulator. Thus, a high-voltage pulse may be timed to occur at any point of waveform of a power line operating voltage.

    As a source of high-voltage pulses the generator based on exploding wires was used. This generator is shown in Fig. 3. It consists of the inductance and the block of exploding wires. Explosion of conductors occurs in the cylindrical chamber with a diameter of 60 mm and a length of 1550 mm. It was filled with nitrogen at pressure up to 1 MPa. Copper wires with a diameter of 40, 50 and 80 μm were used in experiments. Parameters of a generated pulse can be changed by means of changing the diameter and quantity of exploding wires.

    Figure  3.  Pulse generator based on exploding wires

    The generator based on exploding wires forms the pulse with the following parameters: peak voltage 60-400 kV; rise time 30-100 ns; pulse duration 50-500 ns. The waveform of generated pulse is shown in Fig. 4.

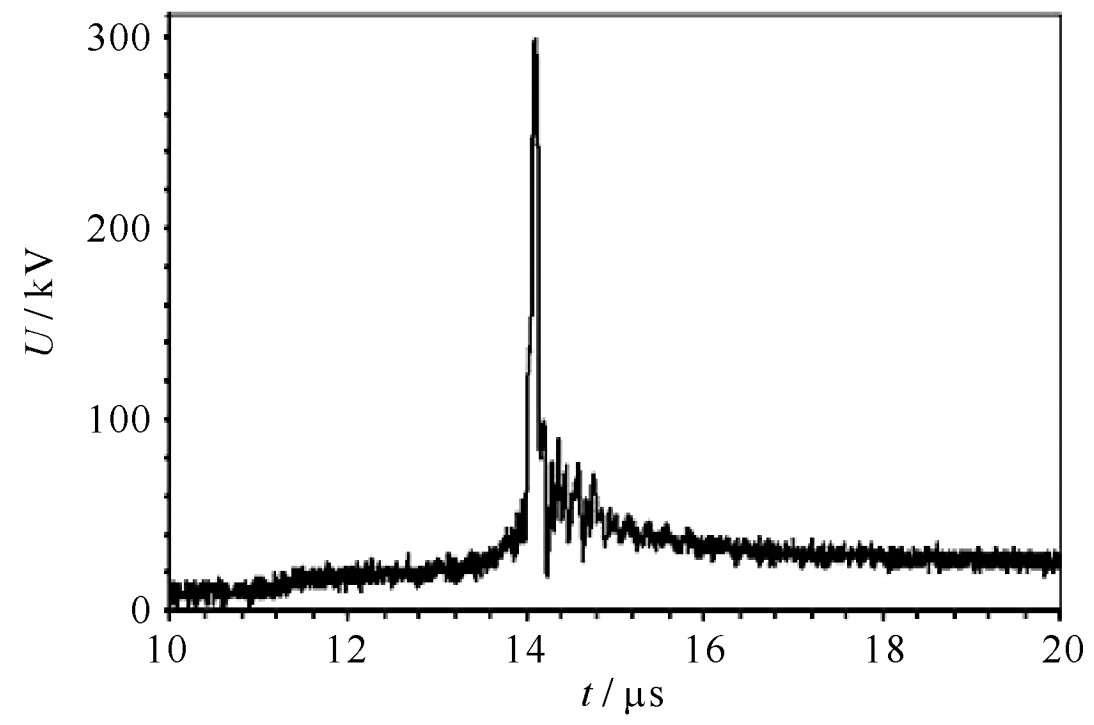

    Figure  4.  Waveform of the generated pulse

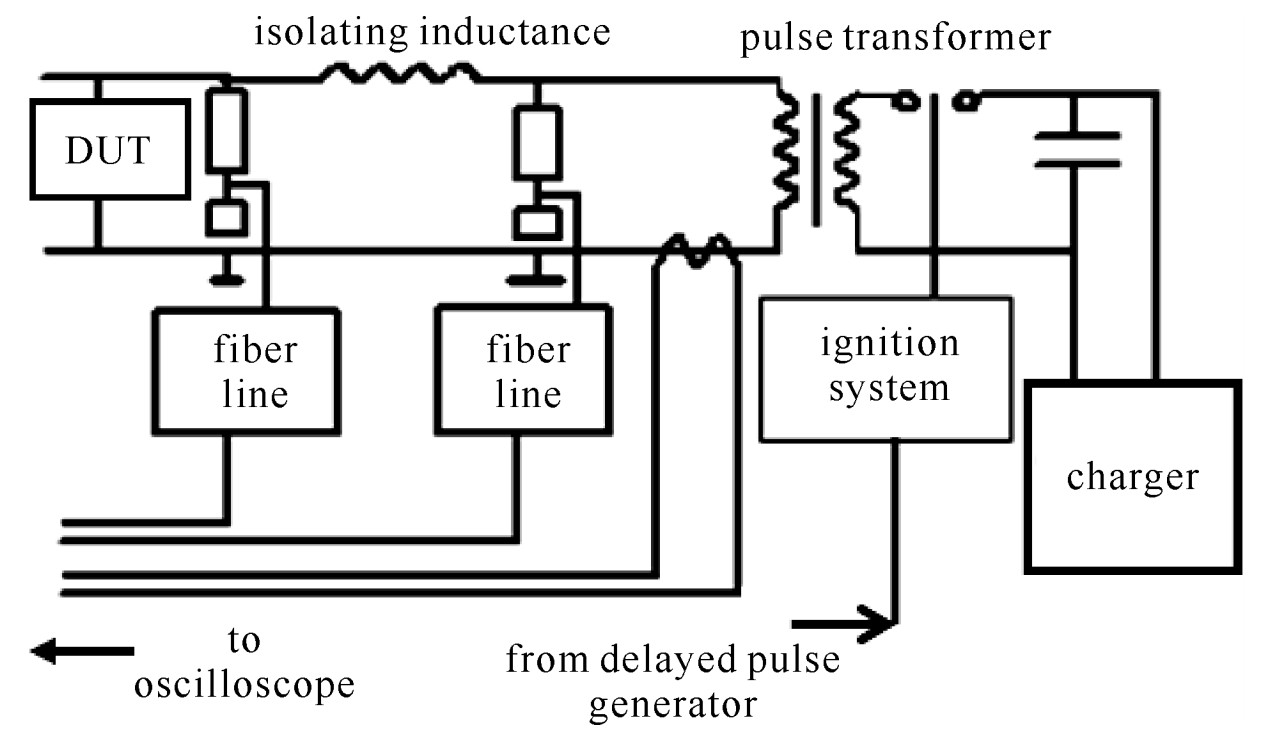

    The block-diagram of the test equipment used to reproduce a power line operating voltage is shown in Fig. 5.

    Figure  5.  Simulator of power line operating voltage

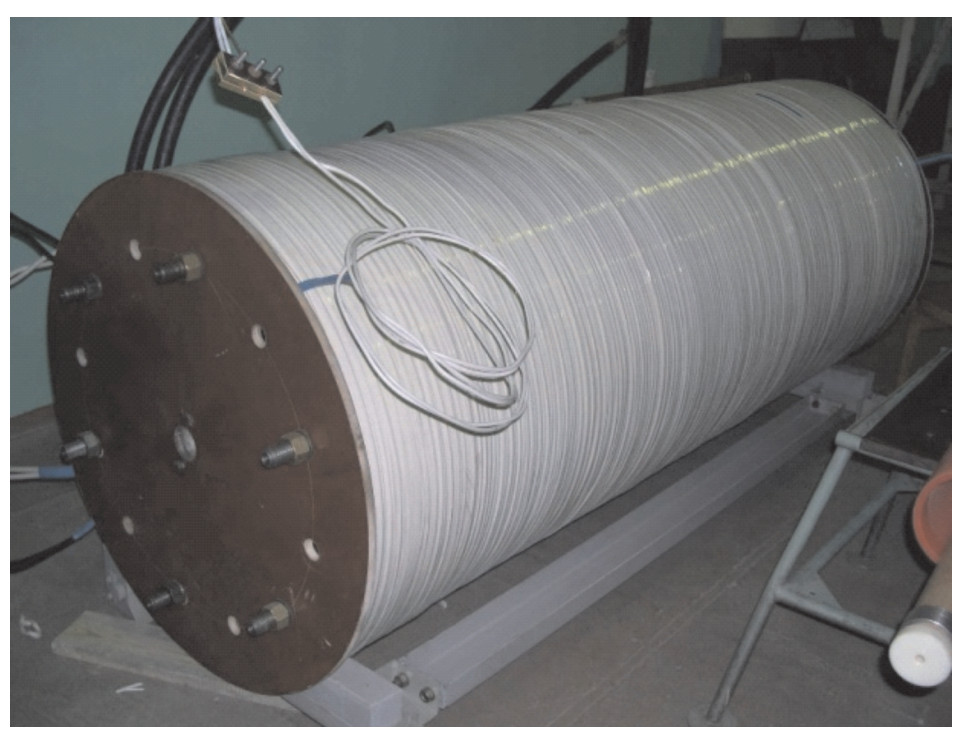

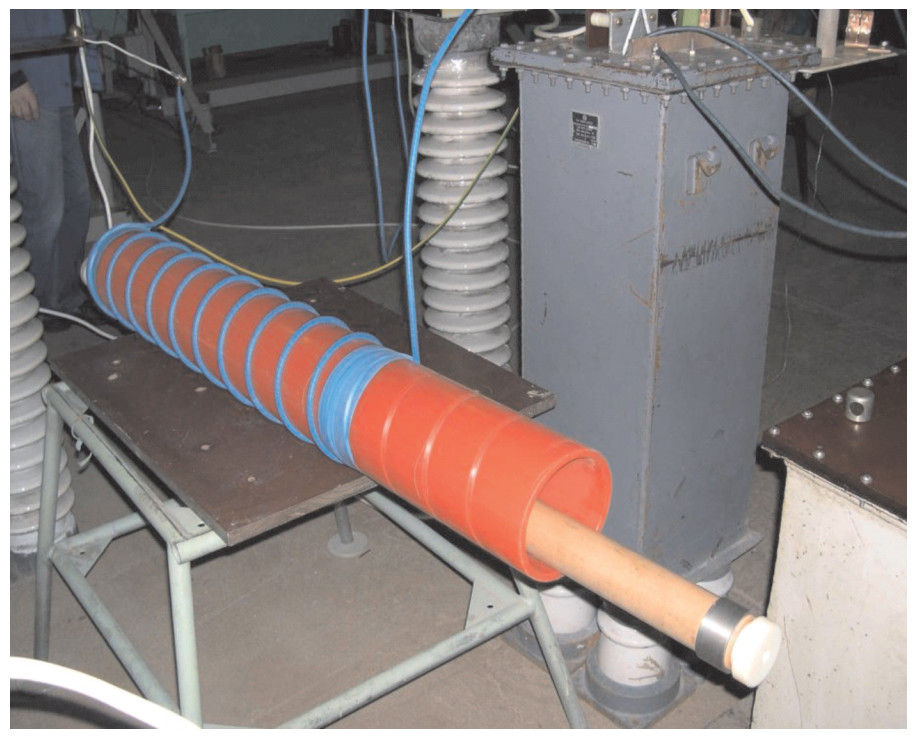

    The basic element of the simulator of a power line operating voltage is the air-core pulse transformer. Fig. 6 shows the air-core transformer. It forms a voltage with an effective frequency from 30 Hz up to 100 Hz.

    Figure  6.  Air-core transformer

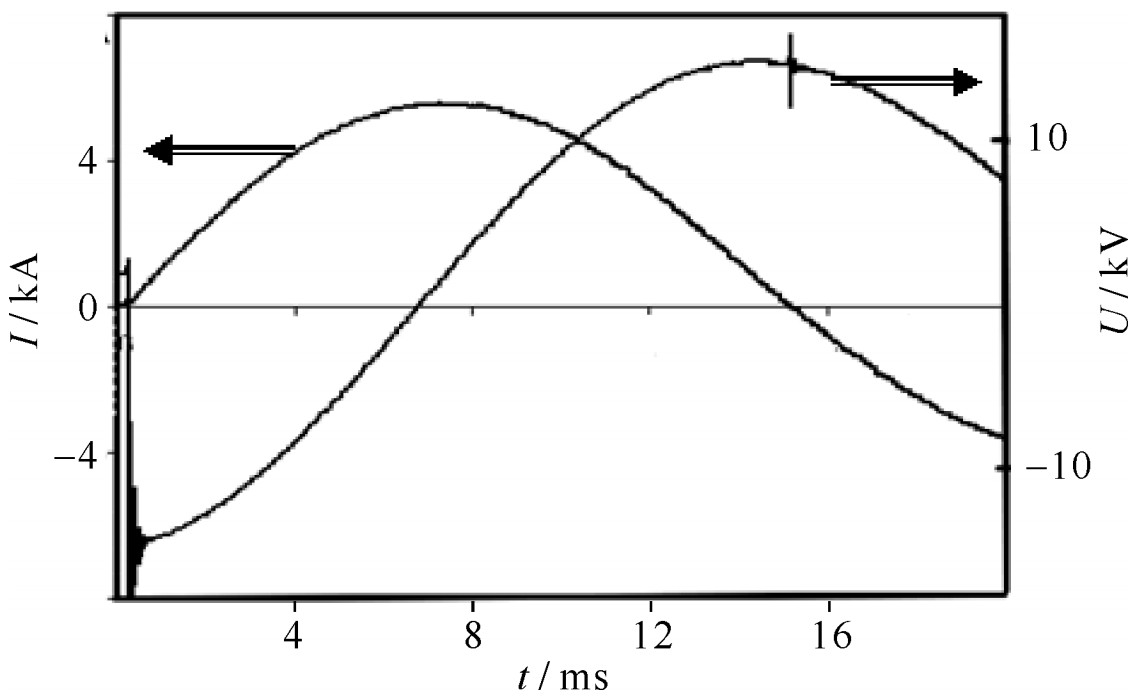

    By changing the voltage of the capacitance storage one can control the amplitude of the reproduced power line operating voltage. Waveforms of a current in the primary winding of the air-core transformer and an open-circuit voltage in its secondary winding are presented in Fig. 7.

    Figure  7.  Current (I) in primary winding and the open-circuit voltage (U) in secondary winding of the air-core transformer

    The open-circuit voltage of the transformer has an amplitude of 15 kV when the voltage of the charger is equal to 3 kV. The open-circuit voltage delays on 90° from the current in primary winding of the air-core transformer.

    Required amplitude of the power line current may be reproduced in the secondary short-circuit winding. Waveforms of the current in the primary winding and the short-circuit current in the secondary winding are presented in Fig. 8. One can see that the current in the primary winding is about 10 kA. In this case the short-circuit current in the secondary winding is about 1 kA. This current will be a current of arc after overlapping of the DUT. Currents in the primary and secondary windings are in phase. Thus, the line operating voltage and the arc current will be 90° out of phase at power-on testing.

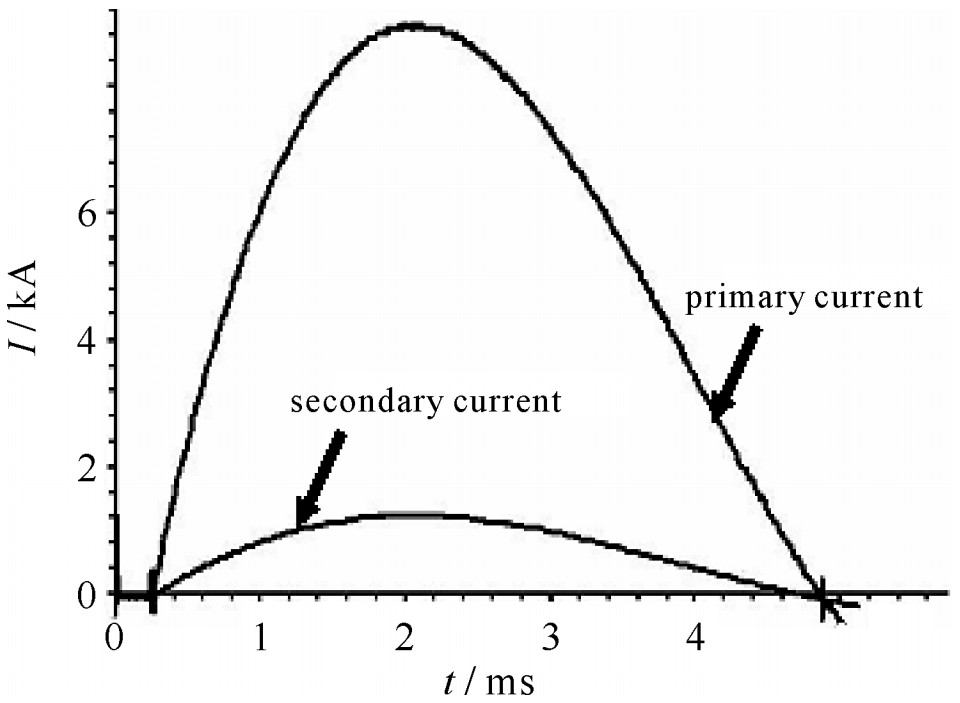

    Figure  8.  Currents in windings of the transformer at short circuit

    Control pulses of the delayed pulse generator start ignition systems of the high-voltage pulse simulator and the power line operating voltage simulator. Thus, time delay between the high-voltage pulse and maximum of the line operating voltage may be in range from several microseconds up to several milliseconds.

    To measure parameters of the reproduced pulses and to register processes of DUT overlapping the following measuring tools are used:

    — Digital oscilloscope;

    — Digital camera (exposition time is 0.03 ms, shooting frequency is 300 Hz);

    — Rogovski coil;

    — Capacity divider (rise time 5 ns, factor of division 1∶350 000);

    — Fiberoptic line;

    — Resistive high-voltage divider.

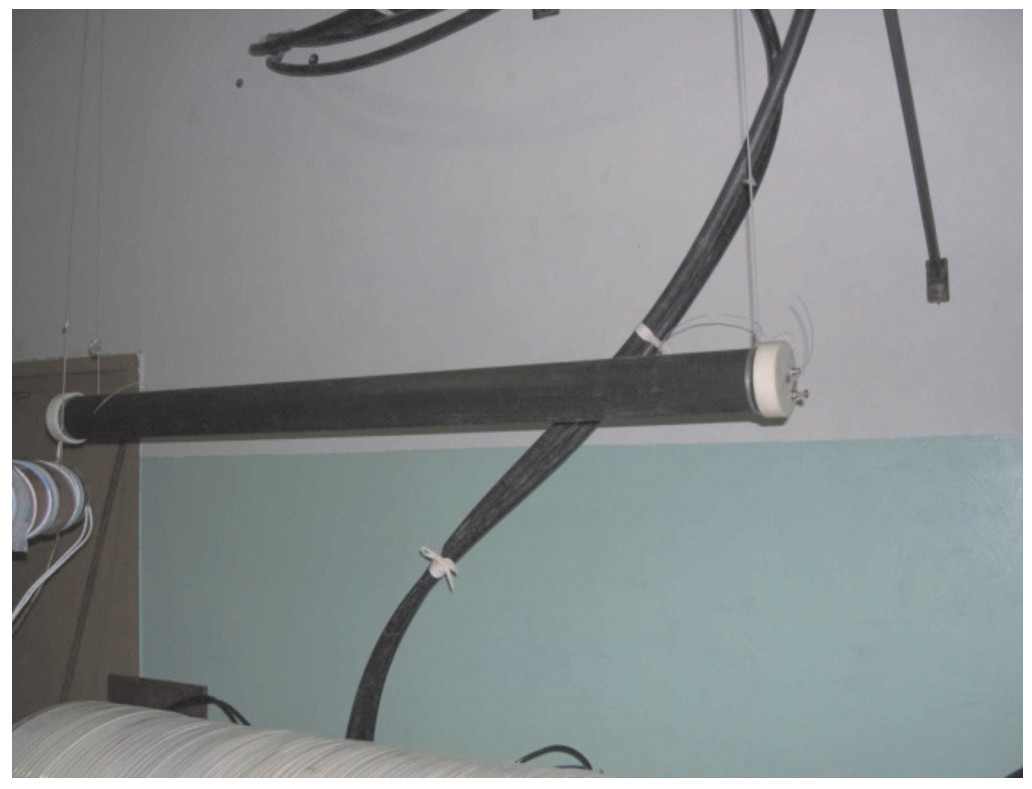

    Photos of the resistive high-voltage divider and the capacity divider are presented in Fig. 9 and Fig. 10.

    Figure  9.  Resistive high-voltage divider

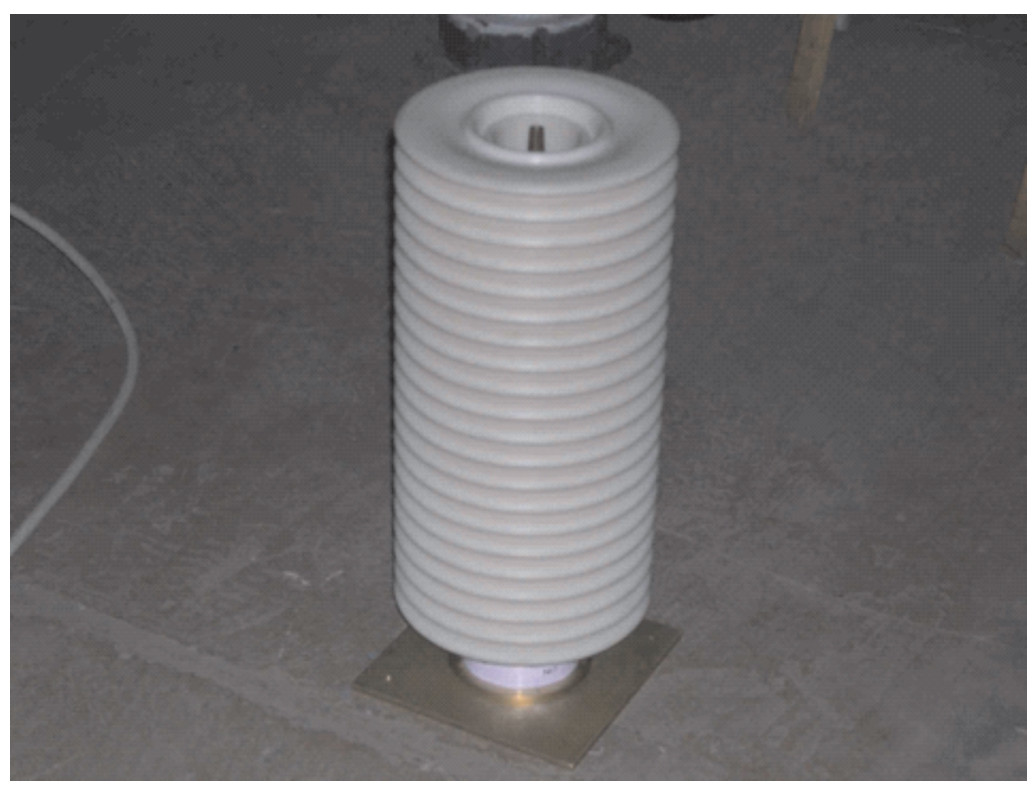

    Figure  10.  Capacity divider

    It is necessary to remind that the experimental setup described above has been used for high-voltage insulators tests. Naturally, the scheme of transformers tests should be different, as is shown in Fig. 11.

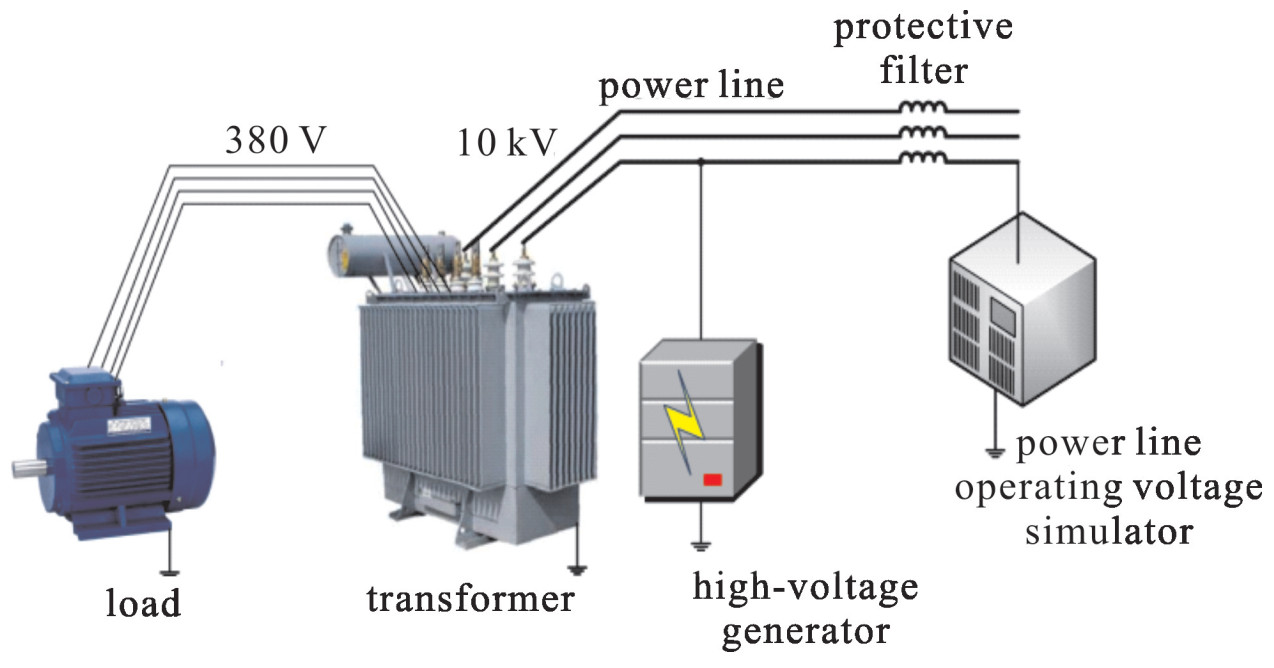

    Figure  11.  Transformers test scheme based on the equipment developed for insulators test

    Apparently, this scheme does not need comments as it is analogous to the scheme of insulators tests described above. However, it should be noted that it has a shortcoming: only one phase is being exposed to influence of test pulses. The schemes overcoming this shortcoming are presented in the following section.

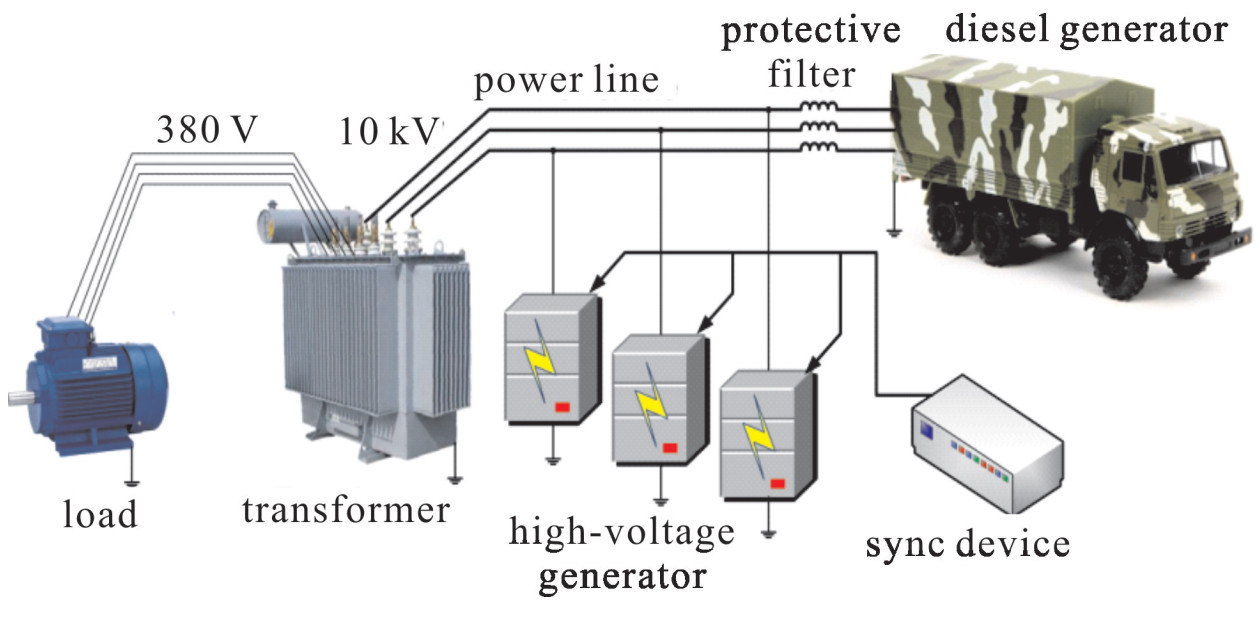

    The first variant of the transformer test with the use of a serial 10 kV diesel-generator is shown in Fig. 12. Besides the diesel-generator, this scheme includes three high-voltage generators and a device for their synchronization.

    Figure  12.  Scheme of the transformer test by means of a diesel-generator and three high-voltage generators

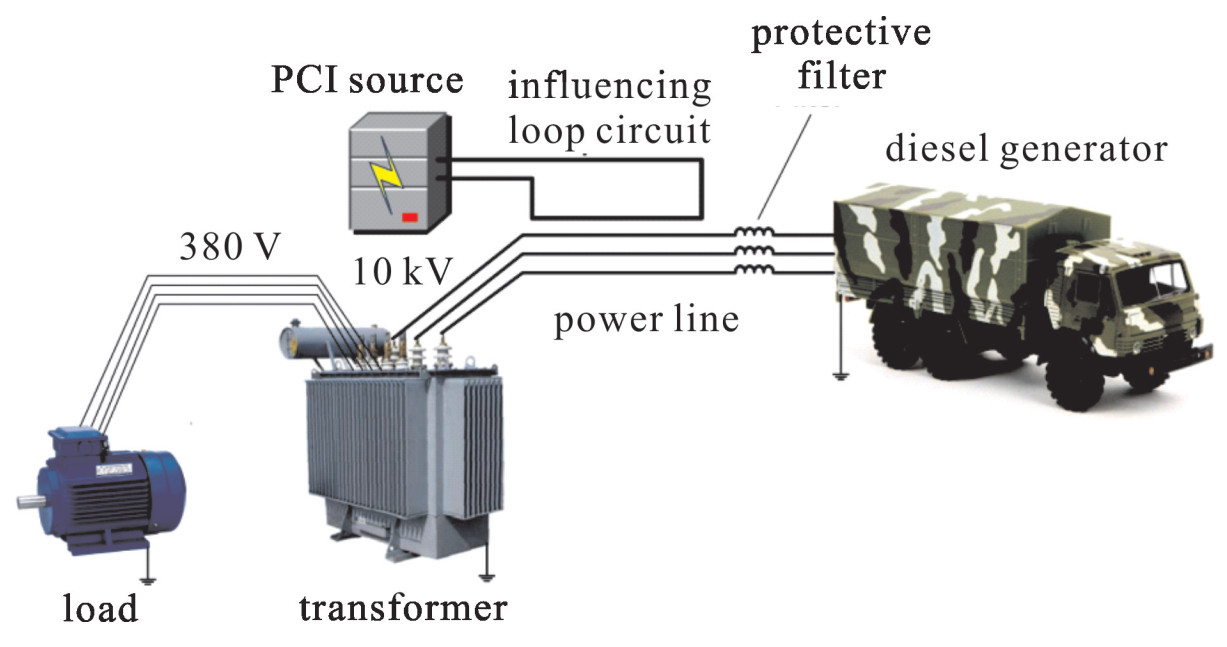

    This scheme is much simpler in realization in comparison with the previous one, as it does not demand building of the simulator of an operating voltage for the high-voltage power line. However it has two shortcomings, one is that the extremely powerful high-voltage diesel-generator must be used, the other consists in using three synchronously functioning generators of high voltage pulses. It is possible to eliminate this difficulty by using the optimized scheme shown in Fig. 13.

    Figure  13.  Scheme of the transformer test by means of a diesel-generator and influencing loop circuit

    Practical application of the optimized scheme shows that it is the simplest in realization in comparison with the other two of the three schemes. Yet it still has shortcomings. The main shortcoming is that the maximum voltage concerning the earth which can be induced by means of an influencing circuit does not exceed 100 kV.

    The previous researches showed that joint action of a high-voltage pulse disturbance and an operating voltage of a power line leads to destruction of insulators of this line. This fact testifies about need of assessing immunity of other elements of power infrastructure to similar influences. A set of ways which can be used for test of high-voltage transformers is presented in the article. One of them is similar to the way used for test of insulators. It includes the high-voltage pulse simulating an electric disturbance and the pulse which simulates operating voltage of a power line being given to the transformer. The main shortcoming of this way is high cost of the simulator of the line operating voltage. For this reason, as a rule, only one phase of the transformer is being tested.

    In the article two more ways of tests, free from this shortcoming, are offered. They allow applying the testing pulses to three phases simultaneously. A high-voltage pulse disturbance is simulated by means of three generators or by means of the loop circuit with a current which induces disturbances in all wires of the line simultaneously. An operating voltage of the line is simulated by means of the high power diesel-generator.

  • 图  1  JRR-3M标准燃料组件剖面图

    Figure  1.  Sectional view of JRR-3M standard fuel assembly

    图  2  几何模型

    Figure  2.  Geometry model

    图  3  非相邻流道完全堵塞事故分析结果

    Figure  3.  Analysis results of non-adjacent channel complete blockage accident

    图  4  堵塞物位于中间的分析结果

    Figure  4.  Analysis results with plug in the middle

    图  5  堵塞物位于一侧的分析结果

    Figure  5.  Analysis results with plug in one side

    表  1  固体域材料的热物性参数[13-15]

    Table  1.   Thermophysical parameters of solid materials

    materialdensity/(kg·m−3)specific heat/ (J·kg−1·K−1)thermal conductivity/(W·m−1·K−1)
    6061Al2700896170
    U3Si2-Al6000406.732
    下载: 导出CSV

    表  2  不同网格量下的平均组件计算结果

    Table  2.   Average assembly calculation results under different grid sizes

    number of gridspressure drop/kPamean convective heat transfer coefficient / (W·m−2·K−1)maximum fuel temperature /K
    10446657.9933196.41339.65
    20050057.5233197.97339.44
    45385557.3333120.20339.92
    下载: 导出CSV

    表  3  不同堵塞率及堵塞位置的分析结果

    Table  3.   Analysis results of different blockage rates and positions

    No.blockage rate/%plug positionTfluid,max/KTfuel,max/KVch/(m·s−1)Tout/K
    130middle337.82365.615.29329.12
    235middle340.07368.325.07329.88
    340middle343.56371.824.89330.68
    445middle345.68375.514.66331.76
    550middle358.15390.594.39333.14
    655middle368.59397.684.10335.04
    760middle383.58413.683.75337.67
    830side345.35402.035.44328.44
    935side369.32415.485.29329.13
    1040side387.61436.605.08330.02
    下载: 导出CSV
  • [1] 宋磊, 郭赟, 曾和义. 板状燃料组件入口堵流事故下流场和温度场的瞬态数值计算[J]. 核动力工程, 2014, 35(3):6-10. (Song Lei, Guo Yun, Zeng Heyi. Numerical analysis on transient flow and temperature field during inlet flow blockage accidents of plate-type fuel assembly[J]. Nuclear Power Engineering, 2014, 35(3): 6-10
    [2] Keller F R. Fuel element flow blockage in the engineering test reactor[R]. IDO-16780, 1962.
    [3] Sims T M, Tabor W H. Report on fuel-plate melting at the Oak Ridge Research Reactor[R]. ORNL-TM-627, 1964.
    [4] Adorni M, Bousbia-Salah A, Hamidouche T, et al. Analysis of partial and total flow blockage of a single fuel assembly of an MTR research reactor core[J]. Annals of Nuclear Energy, 2005, 32(15): 1679-1692. doi: 10.1016/j.anucene.2005.06.001
    [5] 李金才, 王平. COBRA-IIIC/MIT-2程序的改进及其在高通量研究堆中的应用[J]. 核科学与工程, 1996, 16(1):35-41. (Li Jincai, Wang Ping. The improvement of COBRA ⅢC/MIT-2 and its application to research reactor[J]. Chinese Journal of Nuclear Science and Engineering, 1996, 16(1): 35-41
    [6] Guo Yuchuan, Wang Guanbo, Qian Dazhi, et al. Thermal hydraulic analysis of loss of flow accident in the JRR-3M research reactor under the flow blockage transient[J]. Annals of Nuclear Energy, 2018, 118: 147-153. doi: 10.1016/j.anucene.2018.04.014
    [7] Guo Yuchuan, Wang Guanbo, Qian Dazhi, et al. Transient thermal-hydraulic analysis of single flow channel blockage in the JRR-3M 20-MW research reactor[J]. Nuclear Technology, 2018, 204(1): 15-24. doi: 10.1080/00295450.2018.1469345
    [8] 郭玉川. 板状燃料元件堆流道堵塞事故分析[D]. 绵阳: 中国工程物理研究院, 2019: 37-42

    Guo Yuchuan. Analysis of plate fuel element reactor channel blockage accident[D]. Mianyang: China Academy of Engineering Physics, 2019: 37-42
    [9] 宋磊. 板状燃料组件堵流事故数值分析[D]. 哈尔滨: 哈尔滨工程大学, 2013: 8-12

    Song Lei. Numerical analysis of the flow blockage accidents in plate-type fuel assembly[D]. Harbin: Harbin Engineering University, 2013: 8-12
    [10] Salama A, El-Morshed S E D. CFD simulation of flow blockage through a coolant channel of a typical material testing reactor core[J]. Annals of Nuclear Energy, 2012, 41: 26-39. doi: 10.1016/j.anucene.2011.09.005
    [11] Salama A. CFD investigation of flow inversion in typical MTR research reactor undergoing thermal–hydraulic transients[J]. Annals of Nuclear Energy, 2011, 38(7): 1578-1592. doi: 10.1016/j.anucene.2011.03.005
    [12] Salama A, El-Morshedy S E D. CFD analysis of flow blockage in MTR coolant channel under loss-of-flow transient: hot channel scenario[J]. Progress in Nuclear Energy, 2012, 55: 78-92. doi: 10.1016/j.pnucene.2011.11.005
    [13] Albati M A, Al-Yahia O S, Park J, et al. Thermal hydraulic analyses of JRR-3: Code-to-code comparison of COOLOD-N2 and TMAP[J]. Progress in Nuclear Energy, 2014, 71: 1-8. doi: 10.1016/j.pnucene.2013.10.015
    [14] 韩华. 弥散型燃料元件的热稳定性实验研究[D]. 北京: 中国原子能科学研究院, 2003: 13

    Han Hua. Experimental study on thermal stability of diffuse fuel element[D]. Beijing: China Institute of Atomic Energy, 2003: 13
    [15] 孙荣先. U3Si2-Al弥散型燃料元件[J]. 核动力工程, 1990, 11(2):69-74. (Sun Rongxian. U3Si2-Al dispersion fuel element[J]. Nuclear Power Engineering, 1990, 11(2): 69-74
