基于新型安全架构的HEPS插入件安全控制系统

赵述涛 曹建社 陆辉华 孙舒晨 巩克云 孙亚军 张祥镇 李啸宇 张磊 李煜辉 李志强 陈宛 龚玲玲 郭青 黄永胜 杨燕伟

赵述涛, 曹建社, 陆辉华, 等. 基于新型安全架构的HEPS插入件安全控制系统[J]. 强激光与粒子束, 2021, 33: 094005. doi: 10.11884/HPLPB202133.210087
引用本文: 赵述涛, 曹建社, 陆辉华, 等. 基于新型安全架构的HEPS插入件安全控制系统[J]. 强激光与粒子束, 2021, 33: 094005. doi: 10.11884/HPLPB202133.210087
Zhao Shutao, Cao Jianshe, Lu Huihua, et al. Safety control system for HEPS insertion device based on new safety architecture[J]. High Power Laser and Particle Beams, 2021, 33: 094005. doi: 10.11884/HPLPB202133.210087
Citation: Zhao Shutao, Cao Jianshe, Lu Huihua, et al. Safety control system for HEPS insertion device based on new safety architecture[J]. High Power Laser and Particle Beams, 2021, 33: 094005. doi: 10.11884/HPLPB202133.210087

基于新型安全架构的HEPS插入件安全控制系统

doi: 10.11884/HPLPB202133.210087
基金项目: 国家自然科学基金项目 (Y61626106A)
详细信息
    作者简介:

    赵述涛,zhaost@ihep.ac.cn

    通讯作者:

    曹建社,caojs@ihep.ac.cn

  • 中图分类号: TP273

Safety control system for HEPS insertion device based on new safety architecture

  • 摘要: 高能同步辐射光源(HEPS)插入件控制系统的主要功能是实现插入件磁间隙的开合运动控制。插入件控制系统的安全运动对插入件、储存环和光束线站的设备和人员安全至关重要。针对HEPS插入件控制系统的安全需求,研究了工业安全设计的标准和规范,在国内外同类型插入件控制系统中首次设计和实现了基于新型安全架构的安全系统。安全系统的设计和实施符合国际安全标准,并达到了安全完整性三级的高安全等级。该系统已成功应用在HEPS测试束线低温波荡器中,并完成了系统性的测试。测试结果表明,HEPS插入件安全系统实现了所有预期的安全指标,达到了高安全等级工业控制系统的标准。

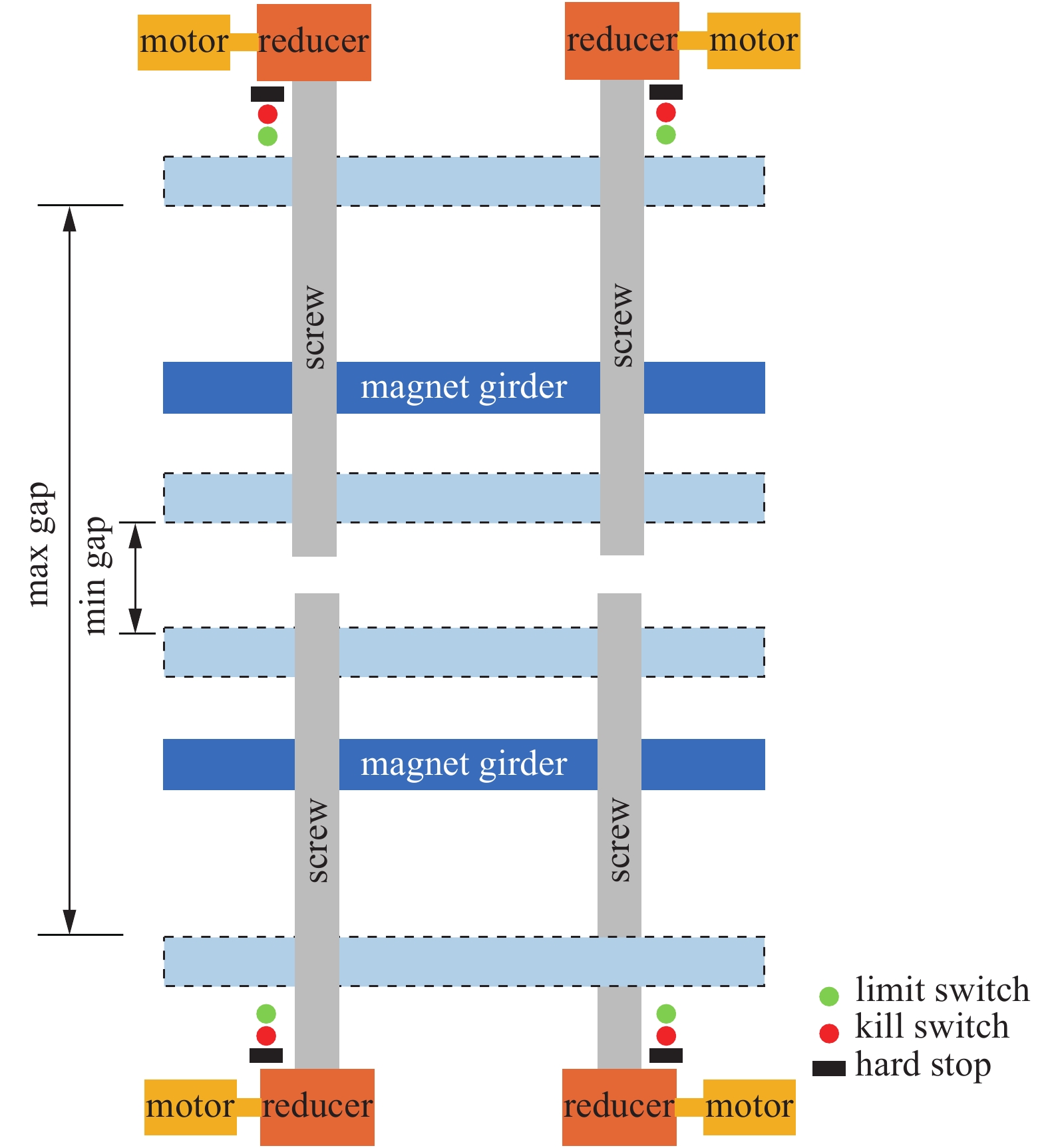

  • 图  1  插入件安全控制系统硬件架构

    Figure  1.  Hardware architecture of safety control system of Insertion Device

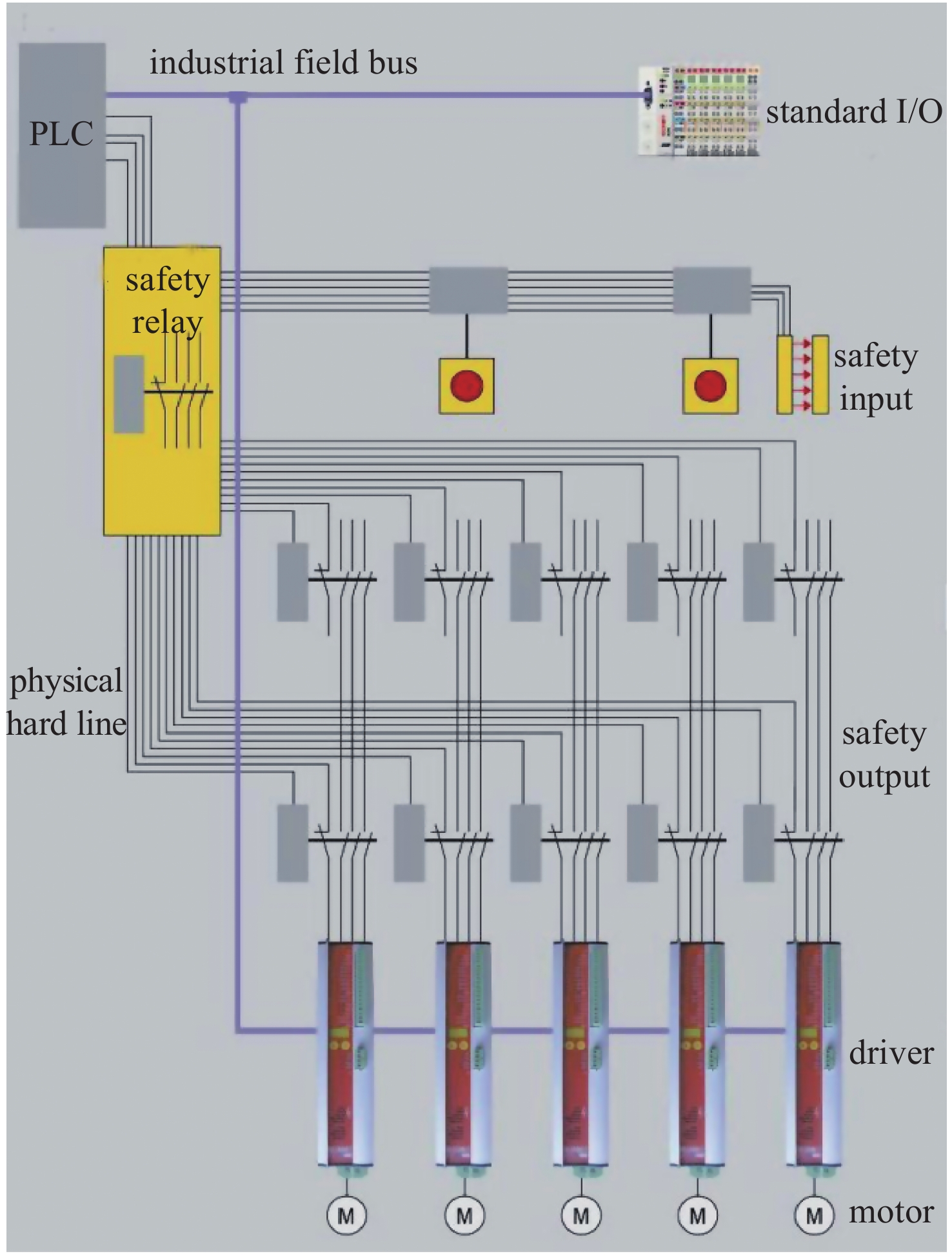

    图  2  安全继电器硬件架构

    Figure  2.  Hardware architecture of safety relay

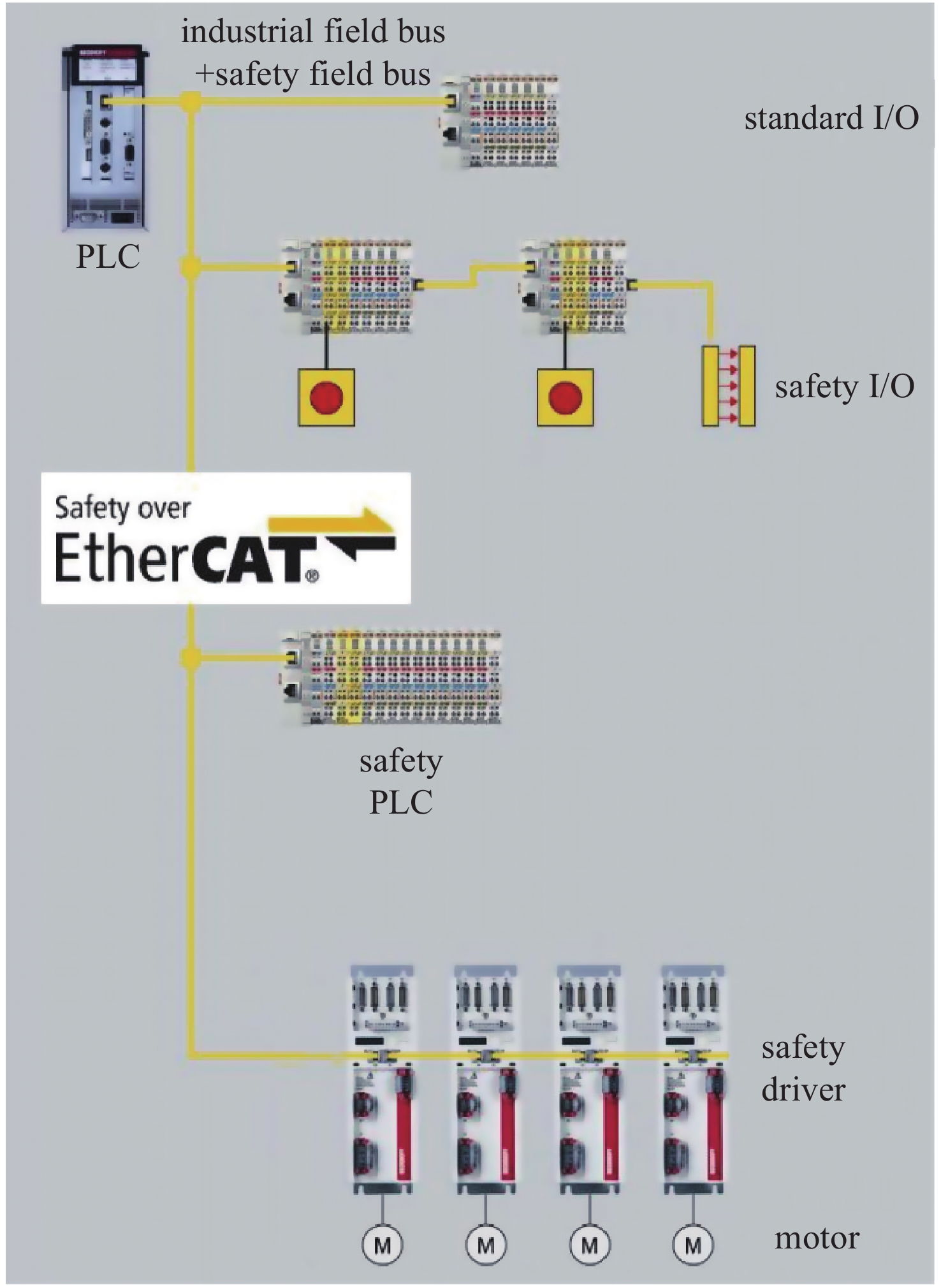

    图  3  基于FSoE的HEPS插入件安全系统架构

    Figure  3.  Safety system architecture of HEPS Insertion Device based on FSoE

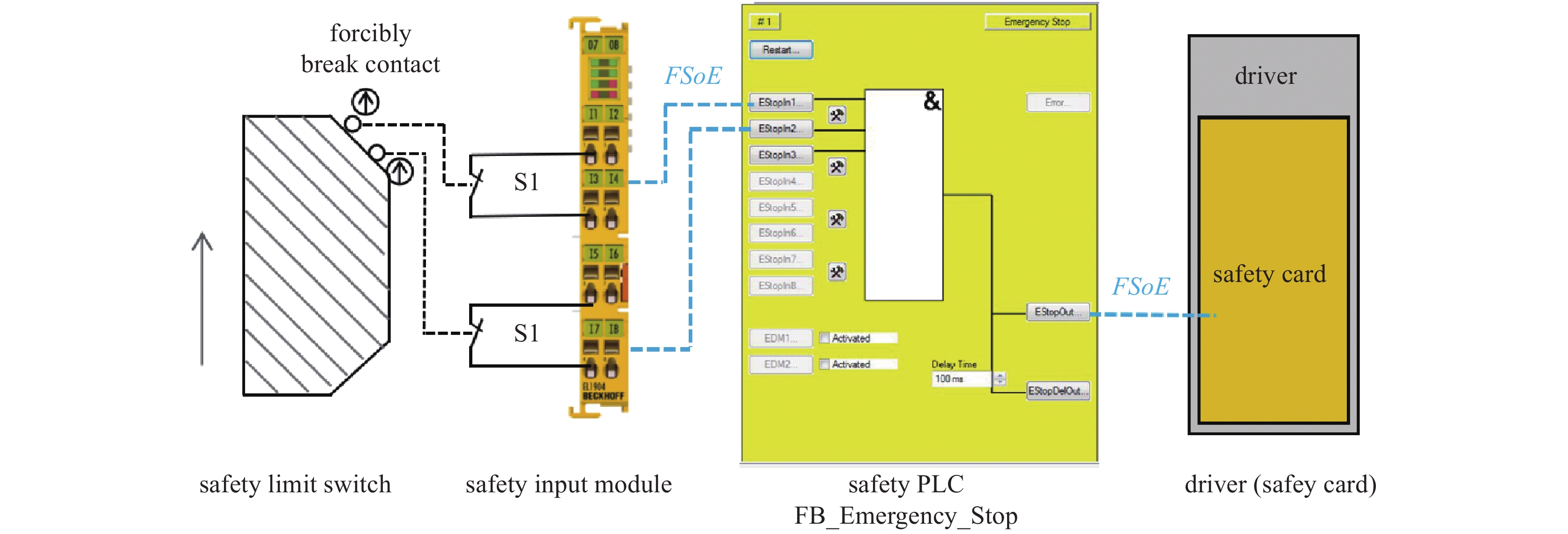

    图  4  安全PLC程序逻辑

    Figure  4.  Program logic of safety PLC

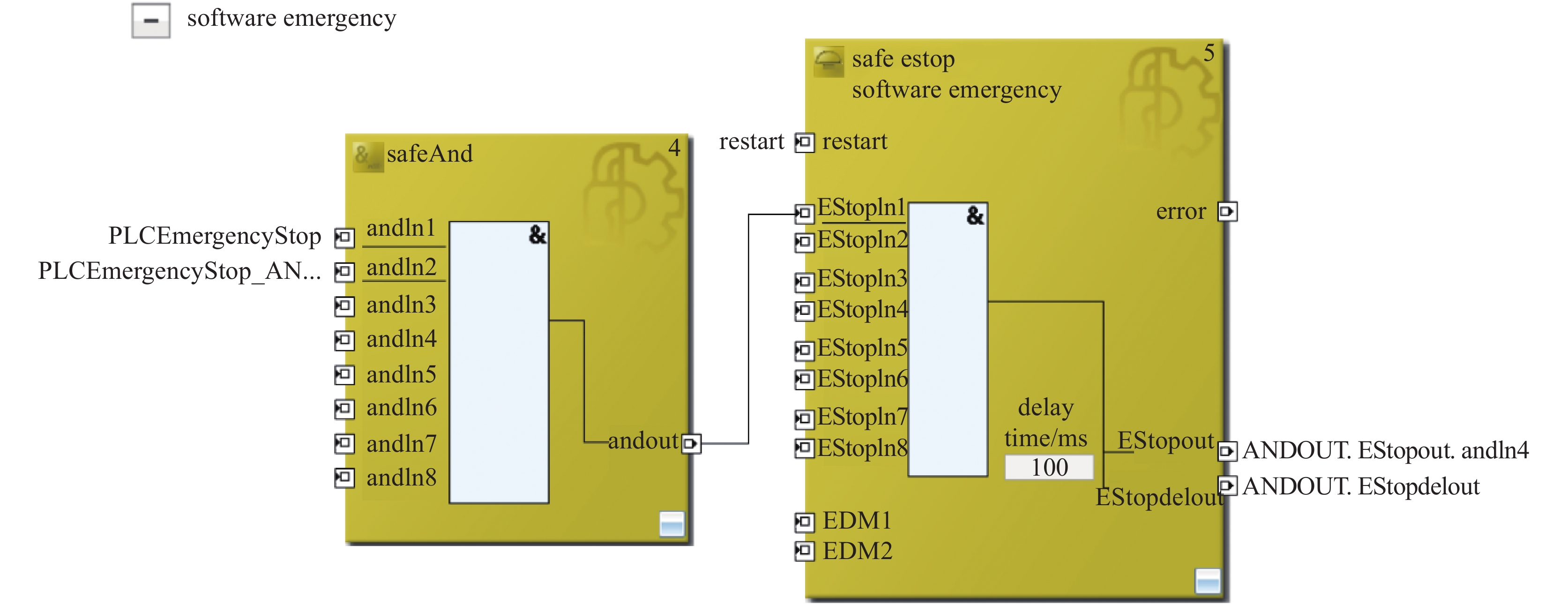

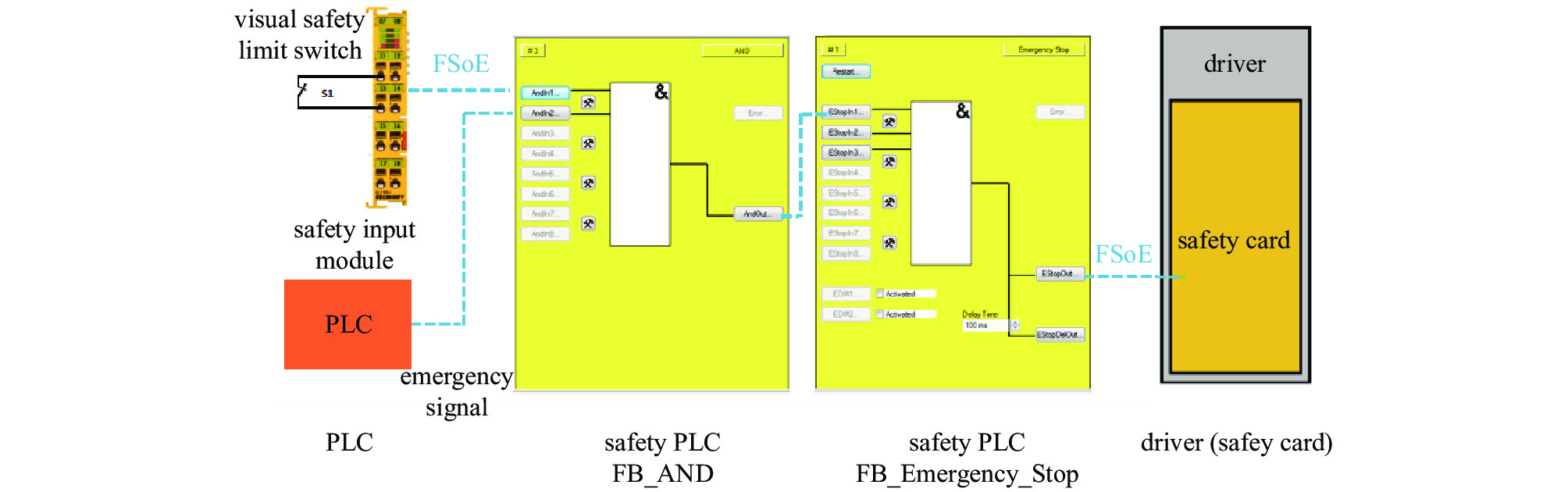

    图  5  PLC软件控制安全系统

    Figure  5.  PLC software control safety system

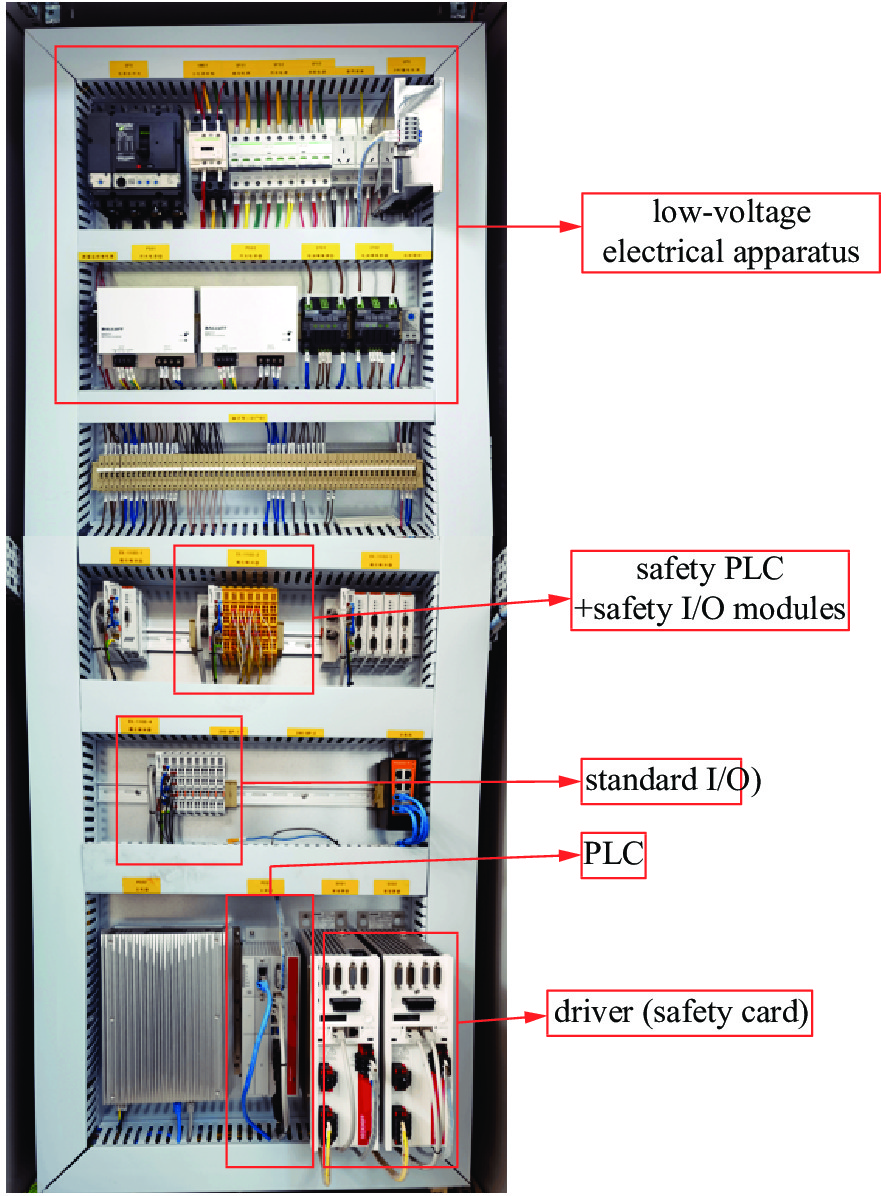

    图  6  控制柜实物图及说明

    Figure  6.  Photo and description of control cabinet

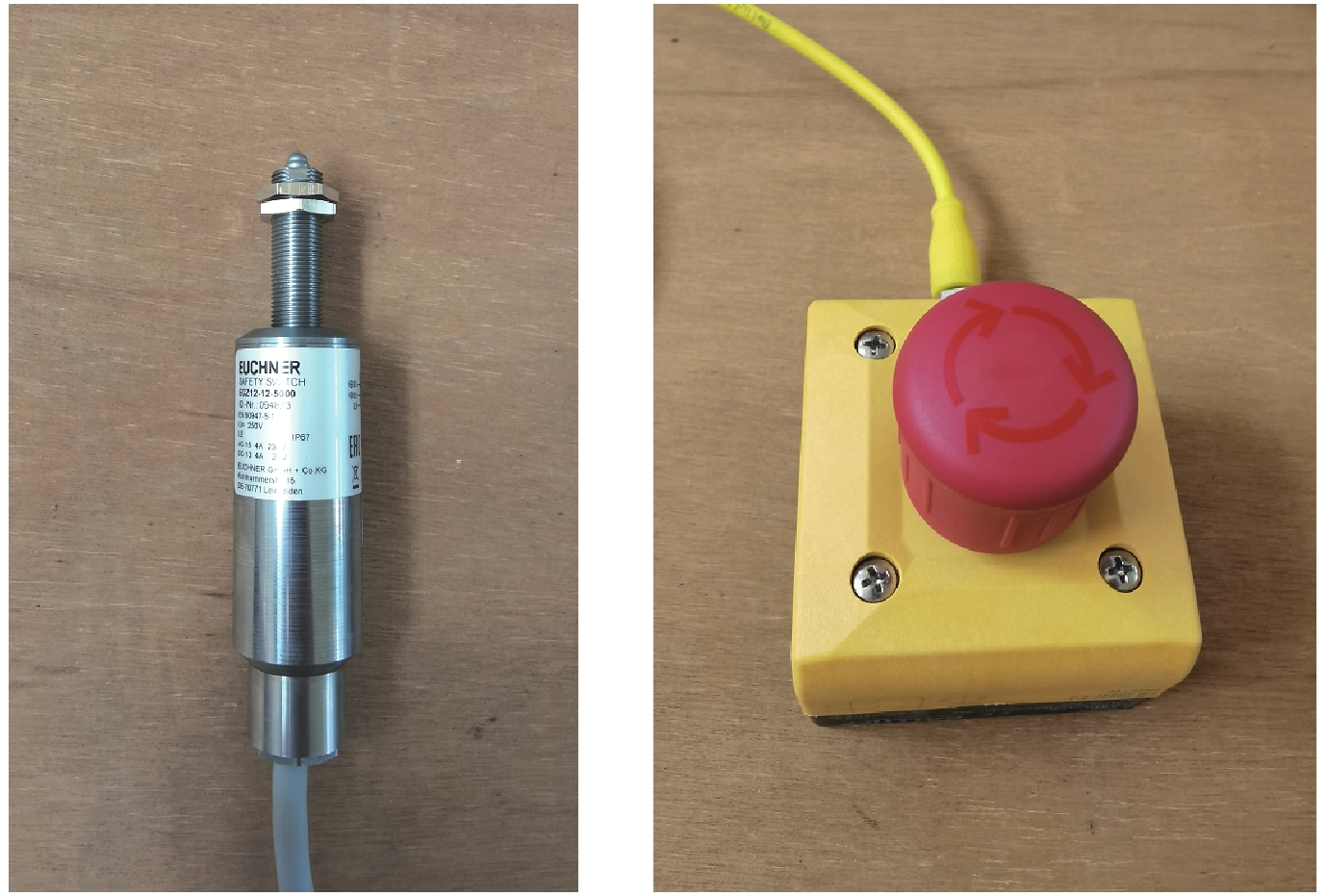

    图  7  安全限位开关和安全急停实物图

    Figure  7.  Photo of safety limit switch and safety emergency stop

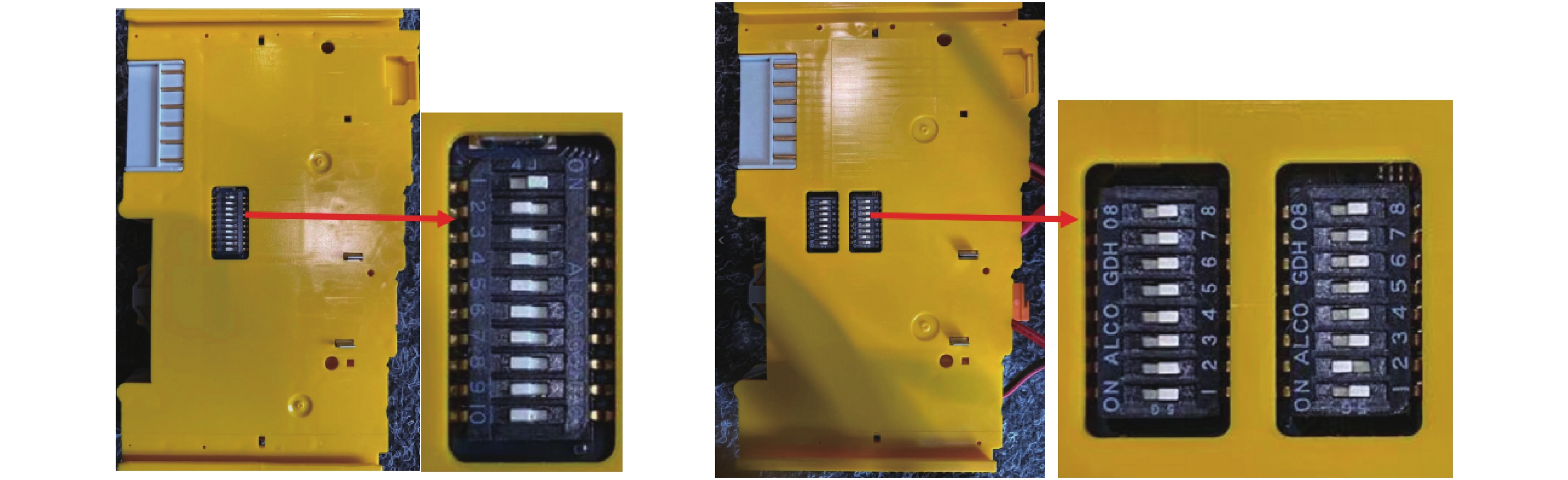

    图  8  安全PLC和安全IO物理拨码

    Figure  8.  Physical dialing code of safety PLC and safety IO

    图  9  硬挡块保护软件程序

    Figure  9.  Software program of hard stop protection

    表  1  低温波荡器安全事故

    Table  1.   Safety incidents of Cryogenic Permanent Magnet Undulator

    gap<5.2 mmgap>40 mm
    Insertion
    Device
    ● mechanical structure deformation
    ● magnet array damage (when gap equals 0)
    ● mechanical structure deformation
    ● the vacuum chamber deformation, even vacuum leakage
    Storage
    Ring
    ● the magnetic field is strengthened, the beam loss increases or even the beam is interrupted
    ● the radiation dose increases and damages the equipment of the storage ring
    ● vacuum leakage of Storage Ring
    ● the beam loss increases or even beam interruption
    ● the radiation dose increases and the equipment damages of the Storage Ring
    BeamLine
    Station
    the increase of radiation dose will damage the optical equipment of BeamLine Station and threaten the safety of personnel
    下载: 导出CSV

    表  2  安全完整性等级

    Table  2.   Safety Integrity Level

    SILPFHPFDapplication range
    4≥10−9~10−8≥10−5~10−4threat to personal safety
    3≥10−8~10−7≥10−4~10−3threat to personal safety
    2≥10−7~10−6≥10−3~10−2threat to device safety
    1≥10−6~10−5≥10−2~10−1threat to device safety
    下载: 导出CSV
  • [1] 姜晓明, 王九庆, 秦庆, 等. 中国高能同步辐射光源及其验证装置工程[J]. 中国科学(中国科学(物理学 力学 天文学), 2014, 44(10):1075-1094. (Jiang Xiaoming, Wang Jiuqing, Qin Qing, et al. Chinese high energy photon source and the test facility[J]. SCIENTIA SINICA Physica, Mechanica & Astronomica, 2014, 44(10): 1075-1094
    [2] Lu Huihua, Chen Wan, Gong Lingling, et al. et al. Development of a PrFeB Cryogenic Permanent Magnet Undulator (CPMU) prototype at IHEP[C]//Proceedings of the 8th International Particle Accelerator Conference. 2017.
    [3] kitegi C. Development of a cryogenic permanent magnet undulator at the ESRF[D]. Grenoble: Université Joseph-Fourier-Grenoble I, 2008.
    [4] Karabekyan S, Pannier R, Pflüger J, et al. The local control system of an undulator cell for the European XFEL[C]//Proceedings of ICALEPCS2011. Grenoble, 2011: 450-453.
    [5] Rose A J, Lay S C, Bell A I, et al. Permanent magnet insertion device control systems on diamond[C]//Proceedings of PCaPAC08. Ljubljana, 2008: 174-176.
    [6] Gu M, Yuan Q B, Chen Z H, et al. In-vacuum undulator controller design for SSRF[C]//Proceedings of IPAC’10. 2010: 3168-3170.
    [7] Zhang J, Zhou Q, Zhuo J. Local control system of the elliptically polarized undulator at SSRF[J]. IEEE Transactions on Applied Superconductivity, 2010, 20(3): 332-335. doi: 10.1109/TASC.2010.2040952
    [8] Chang C H, Hwang C S, Chang C H, et al. Progress in Insertion Devices for TPS in Phase I[C]//Proceedings of IPAC2011. San Sebastian, Span, 2011.
    [9] Kulesza J, Deyhim A, Chen Nian. Design of control instrumentation of two in-vacuum undulators IVU25[C]//Proceedings of PAC07. 2007: 1236-1238
    [10] 吴宁宁, 刘进, 云建军, 等. 安全继电器的安全验证技术[J]. 自动化与仪器仪表, 2012(3):82-83,88. (Wu Ningning, Liu Jin, Yun Jianjun, et al. Safety relay safety authentication technology[J]. Automation & Instrumentation, 2012(3): 82-83,88 doi: 10.3969/j.issn.1001-9227.2012.03.034
    [11] 华伟, 张永, 年华. 安全型PLC系统在锅炉FSSS中的应用[J]. 吉林电力, 2007, 35(2):32-35. (Hua Wei, Zhang Yong, Nian Hua. Application of safe PLC system on the boiler FSSS[J]. Jilin Electric Power, 2007, 35(2): 32-35 doi: 10.3969/j.issn.1009-5306.2007.02.010
    [12] 南通亨特电器有限公司. 一种具有强制断开机构的限位开关: 201620023453.0[P]. 2016-08-17

    Nantong Hunter Electrical Equipment Co Ltd. Limit switch with force disconnected opening mechanism: 201620023453.0[P]. 2016-08-17)
    [13] 杨帆. 分布式安全PLC和继电器在炼钢领域的应用[J]. 设备管理与维修, 2019(22):148-150. (Yang Fan. Application of distributed safety PLC and relay in the field of steelmaking[J]. Plant Maintenance Engineering, 2019(22): 148-150
    [14] 倍福自动化设备贸易(上海)有限公司. Safety over EtherCAT: 工厂级安全架构的基础[J]. 国内外机电一体化技术, 2013(2):51-52. (Beckhoff Automation Equipment Trading (Shanghai) Co. Ltd Safety over EtherCAT: the foundation of factory level safety architecture[J]. Mechatronics Technology at Home and Abroad, 2013(2): 51-52
    [15] 吕红卓. 基于安全PLC的新型楼宇消防控制系统的可行性研究[J]. 消防技术与产品信息, 2013(9):47-50. (Lv Hongzhuo. Feasibility study of new building fire control system based on safety PLC[J]. Fire Technique and Products Information, 2013(9): 47-50 doi: 10.3969/j.issn.1002-784X.2013.09.015
    [16] Zhao Shutao, Cao Jianshe, Lu Huihua, et al. Control system for Cryogenic Permanent Magnet Undulator (CPMU) of High Energy Photon Source (HEPS)[J]. Radiation Detection Technology and Methods, 2021, 5(1): 117-121. doi: 10.1007/s41605-020-00227-4
