无线通信系统电磁脉冲传导防护组件设计与有效性试验验证

杜传报 毛从光 崔志同 孙东阳 郝佳 吴伟 陈伟 吴志强 邱扬

杜传报, 毛从光, 崔志同, 等. 无线通信系统电磁脉冲传导防护组件设计与有效性试验验证[J]. 强激光与粒子束, 2021, 33: 093005. doi: 10.11884/HPLPB202133.210155
引用本文: 杜传报, 毛从光, 崔志同, 等. 无线通信系统电磁脉冲传导防护组件设计与有效性试验验证[J]. 强激光与粒子束, 2021, 33: 093005. doi: 10.11884/HPLPB202133.210155
Du Chuanbao, Mao Congguang, Cui Zhitong, et al. Design and validation test of high-altitude electromagnetic pulse conductive protector module for wireless communication system[J]. High Power Laser and Particle Beams, 2021, 33: 093005. doi: 10.11884/HPLPB202133.210155
Citation: Du Chuanbao, Mao Congguang, Cui Zhitong, et al. Design and validation test of high-altitude electromagnetic pulse conductive protector module for wireless communication system[J]. High Power Laser and Particle Beams, 2021, 33: 093005. doi: 10.11884/HPLPB202133.210155

无线通信系统电磁脉冲传导防护组件设计与有效性试验验证

doi: 10.11884/HPLPB202133.210155
详细信息
    作者简介:

    杜传报(1987—),男,博士,从事无线通信系统电磁脉冲效应试验与防护研究

    通讯作者:

    毛从光(1977—),男,博士生导师,从事电磁脉冲效应评估技术研究

  • 中图分类号: TM937;O441

Design and validation test of high-altitude electromagnetic pulse conductive protector module for wireless communication system

  • 摘要: 为提高甚高频无线通信系统的抗高空电磁脉冲能力,基于易损性分析结果,确定了瞬态泄流和稳态滤波联合防护的设计思路以及设计指标,并研制了防护样件。使用20 ns/500 ns传导注入波形开展防护组件脉冲注入试验,比系统原始防护器残余电流峰值减小60%,启动时间缩短75%,作用时间缩短80%,注入波形低频能量限制(20 MHz以下)提高1个量级;以某甚高频无线通信系统为被试品,开展了防护组件加固验证试验,防护组件残余电流控制在10 A水平以下,被试系统功能和性能指标正常,验证了防护组件设计的有效性。

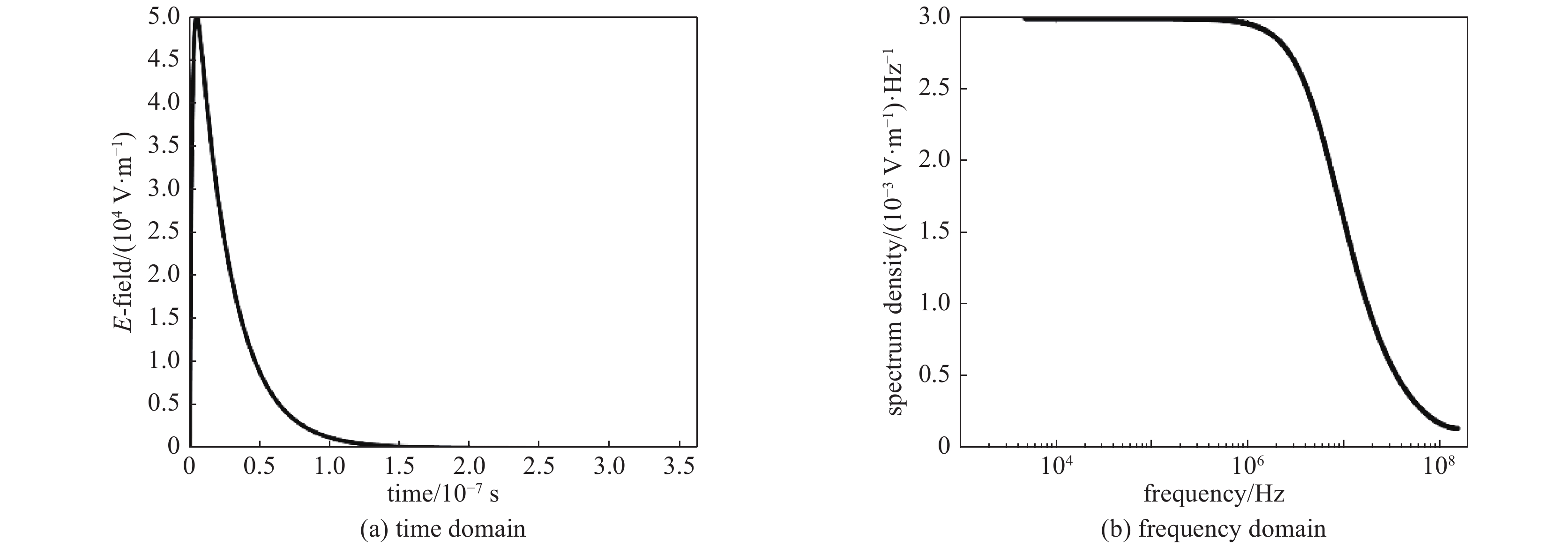

  • 图  1  HEMP环境波形描述

    Figure  1.  HEMP wave description

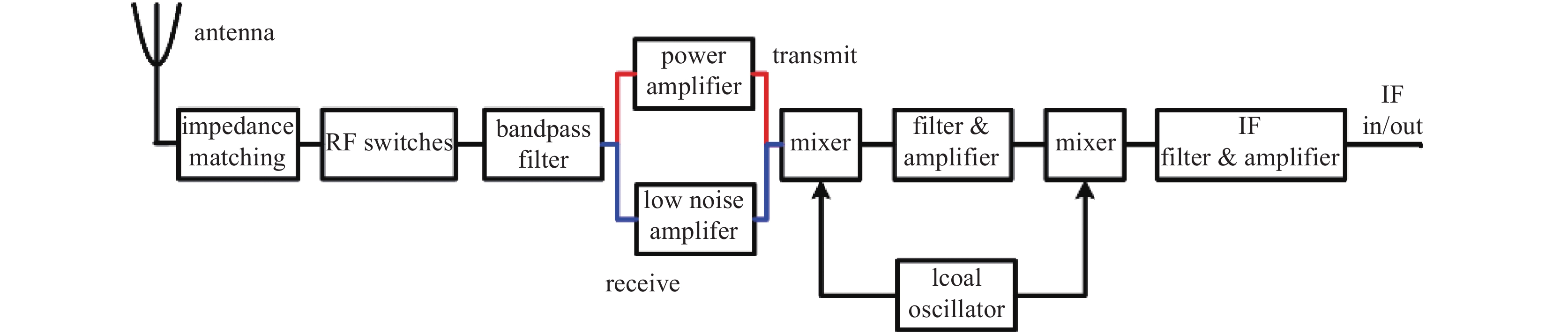

    图  2  典型射频前端通信收发结构

    Figure  2.  Typical transceiver structure for RF front end

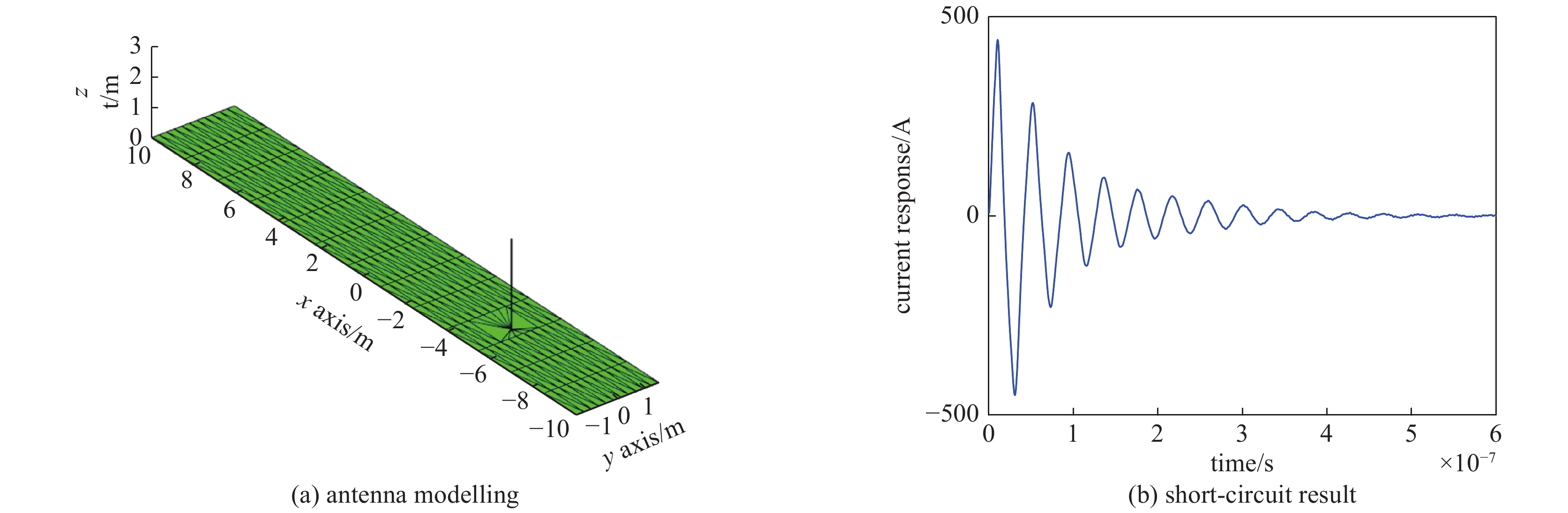

    图  3  天线建模和计算结果

    Figure  3.  Antenna modelling and simulation results

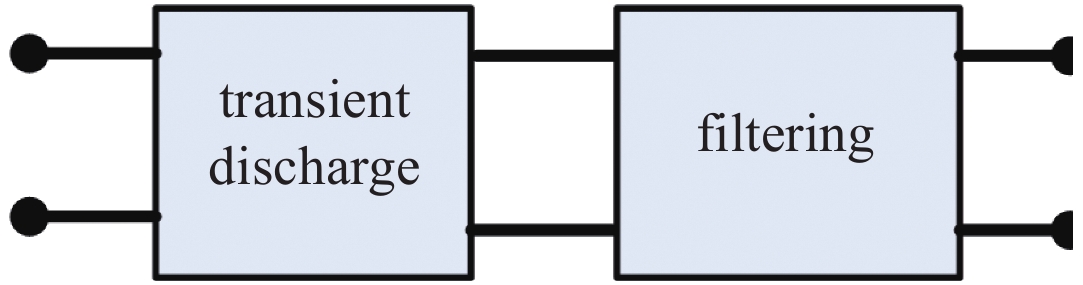

    图  4  组合防护设计示意

    Figure  4.  Combination protection design

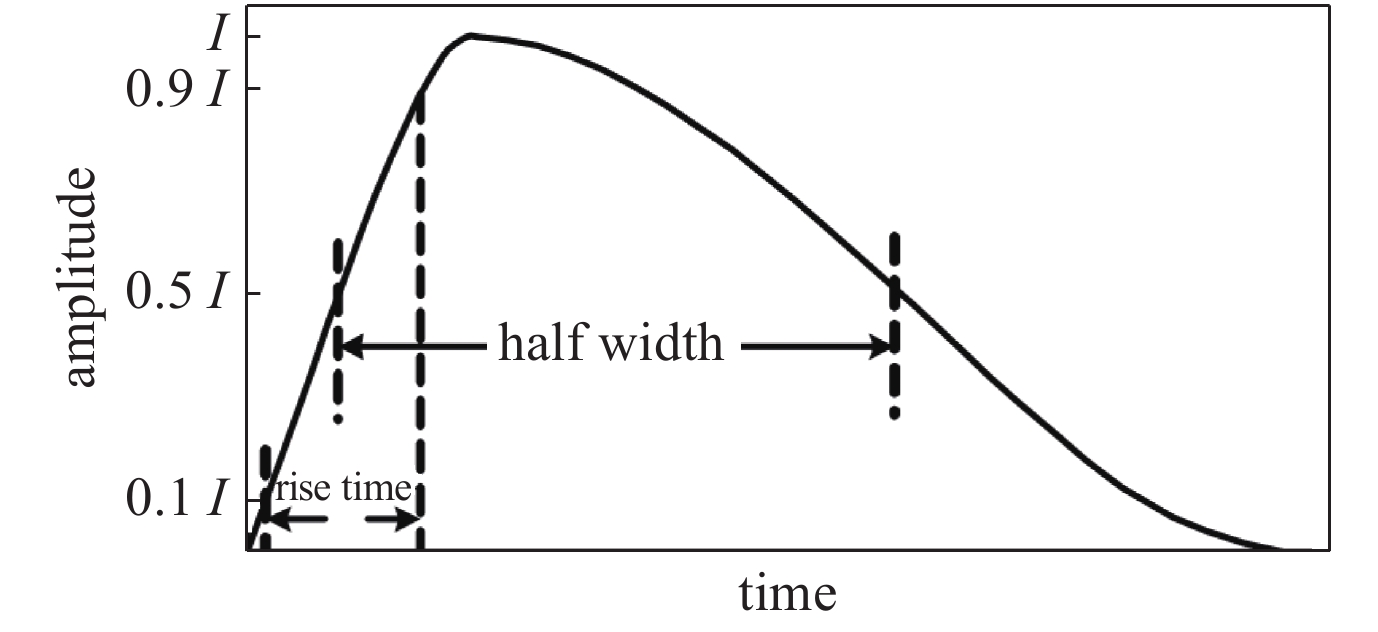

    图  5  脉冲注入波形参数定义图

    Figure  5.  Parameters for pulsed injection wave

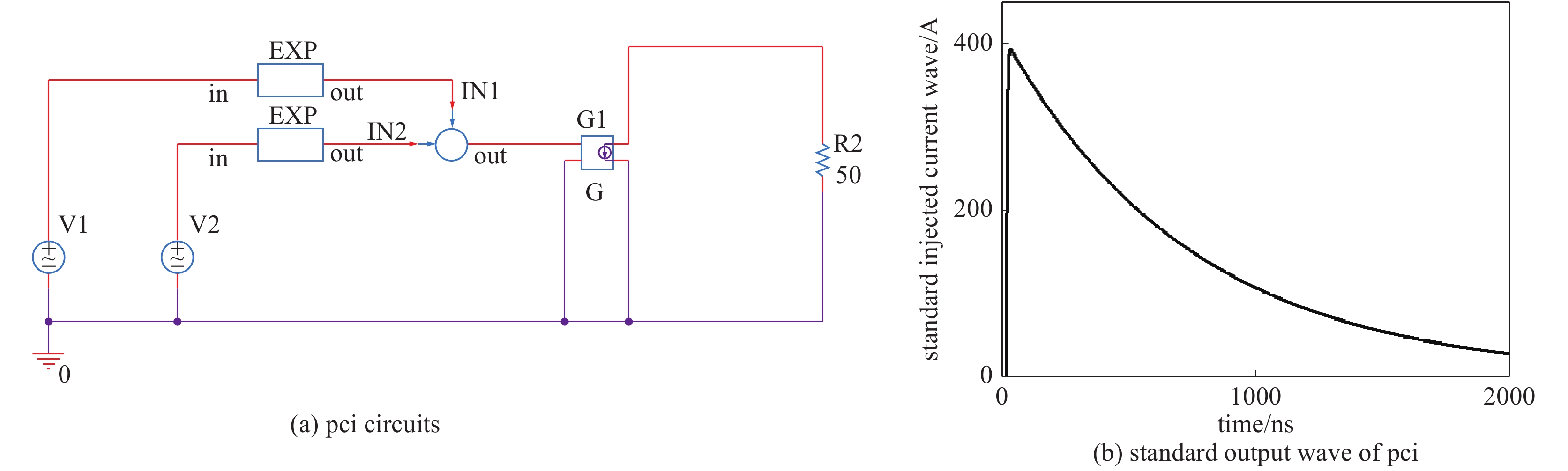

    图  6  脉冲注入源仿真电路和结果

    Figure  6.  Simulation and results for pulsed injection source

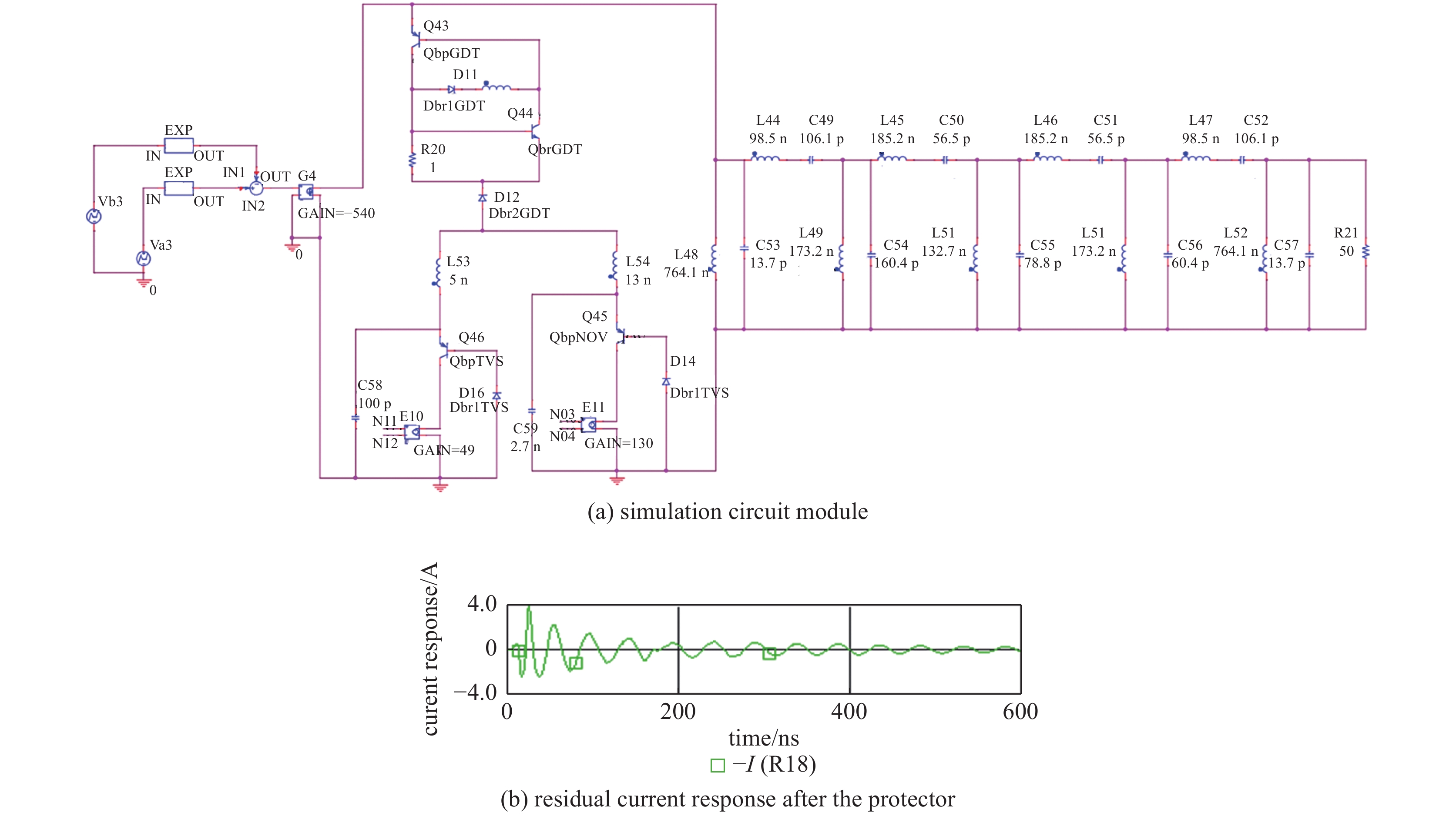

    图  7  防护组件注入试验仿真电路和仿真结果

    Figure  7.  Simulation circuit and residual current response for PCI test of the designed protector module

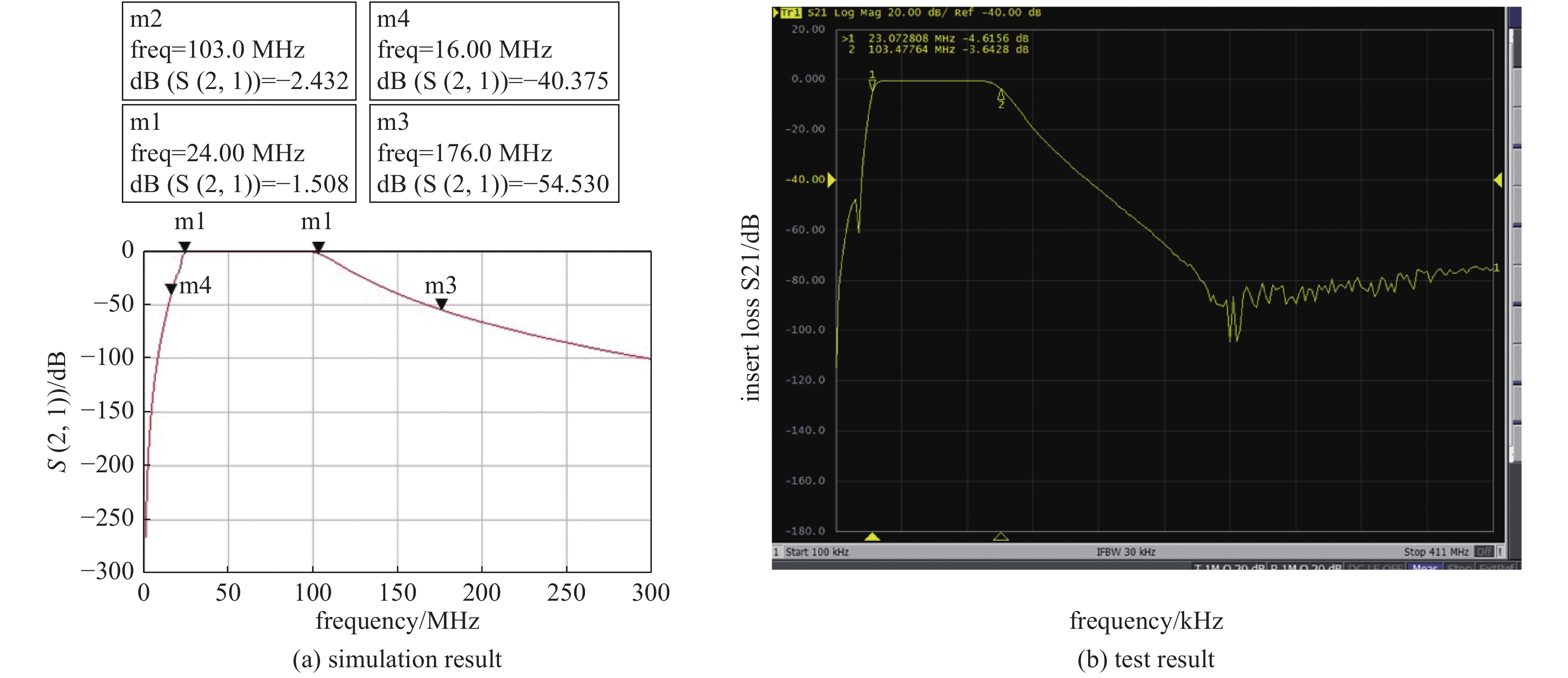

    图  8  插损的仿真和测试结果

    Figure  8.  Simulation and test results for insert loss

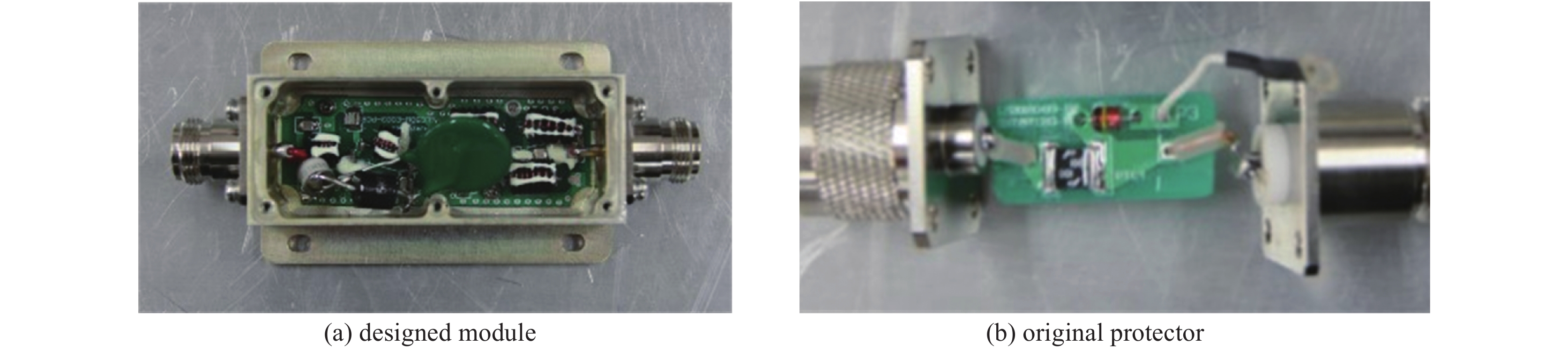

    图  9  防护器组件样照

    Figure  9.  Photos of the two protector modules

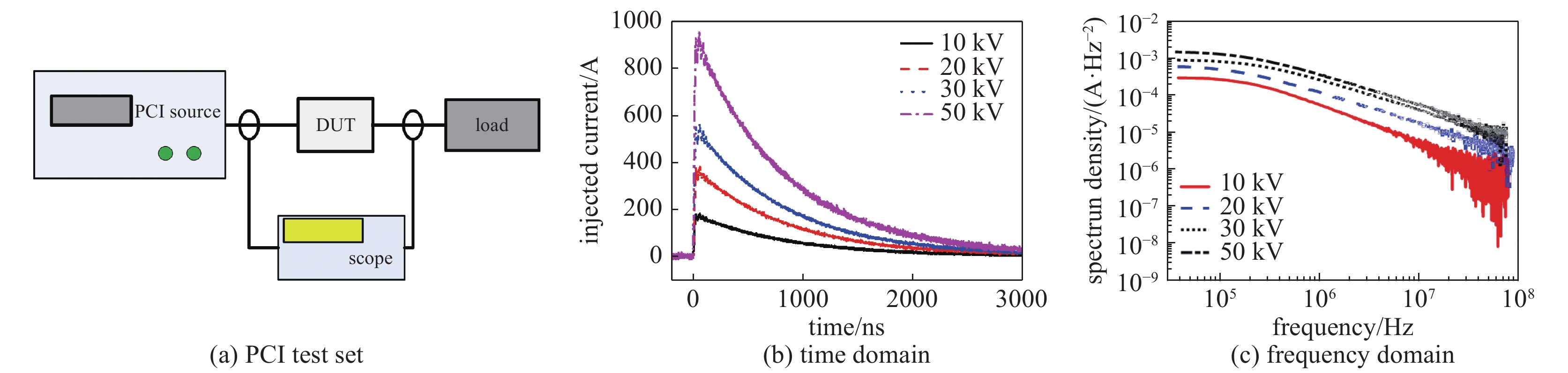

    图  10  注入试验设置和注入电流时频域分析结果

    Figure  10.  Test set for PCI test and analysis of the injected current

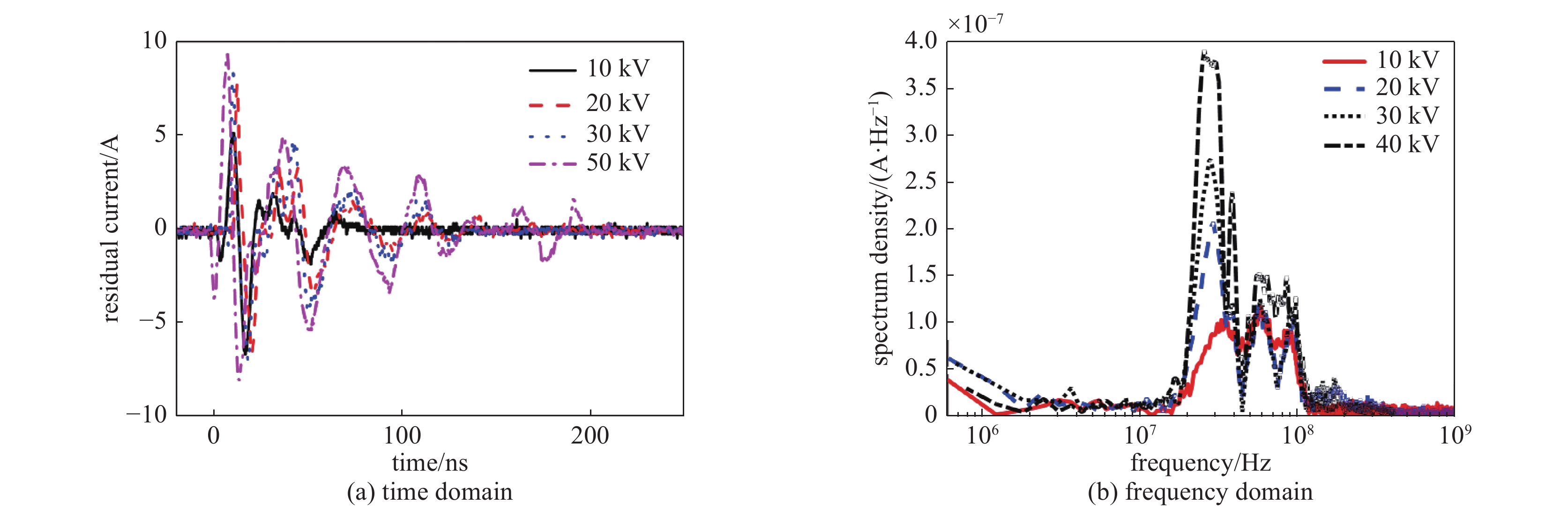

    图  11  组合防护组件残余电流时域频域分析

    Figure  11.  Time and frequency analysis for the residual current of the designed protector module

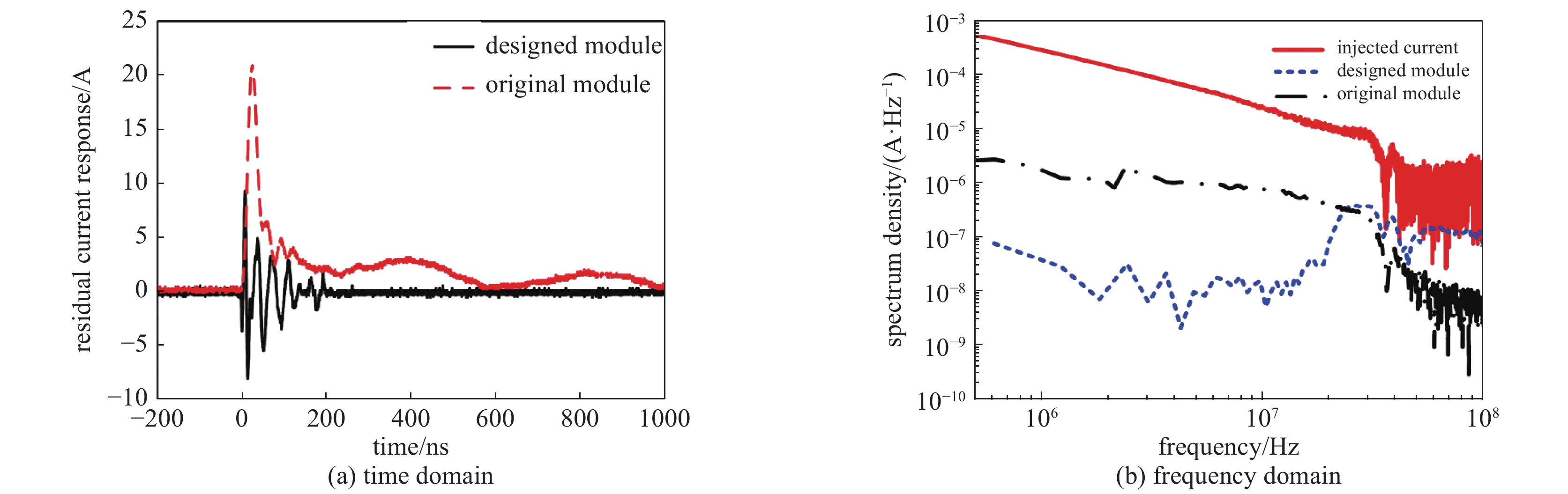

    图  12  两款防护器防护前后电流波形响应分析

    Figure  12.  Comparison of the injected wave and residual wave for these two protector modules

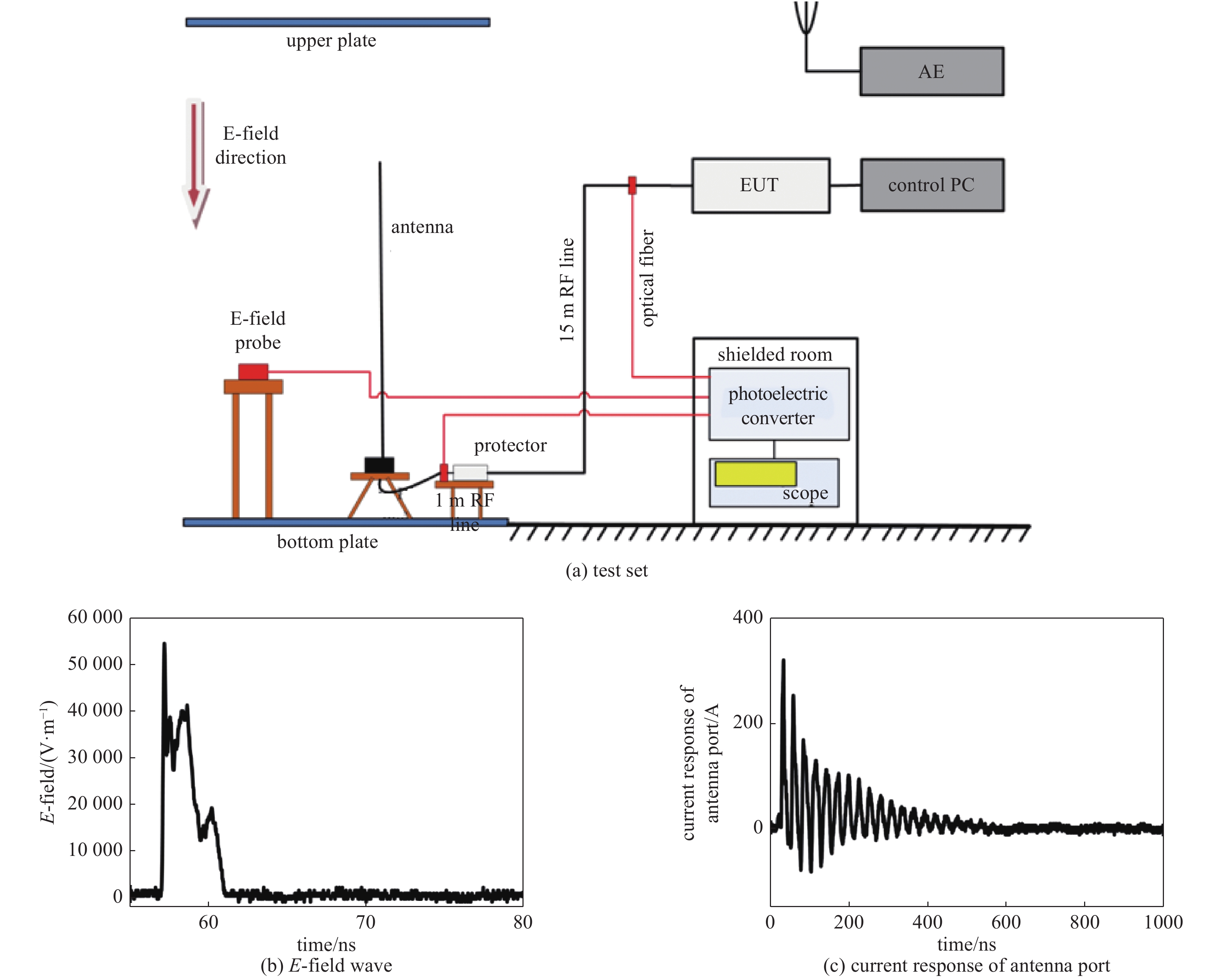

    图  13  脉冲辐照试验布置和响应波形

    Figure  13.  Test set and waves for pulsed radiation test

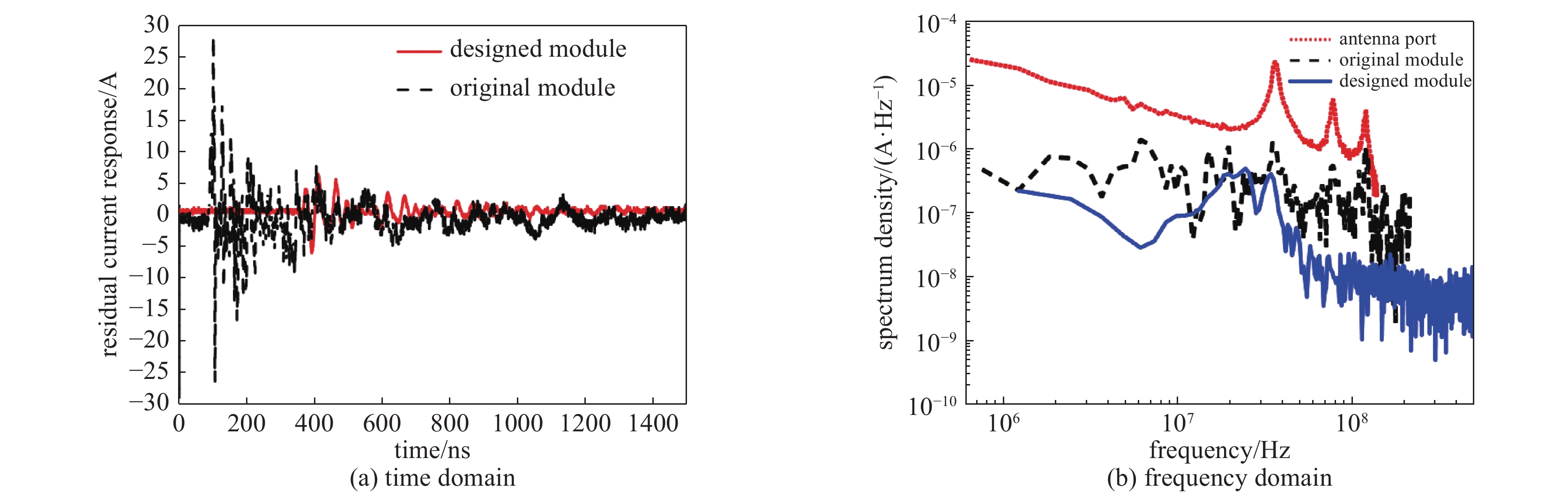

    图  14  两种防护器前后端电流响应测试结果分析

    Figure  14.  Test result analysis for the current responses of these two protectors

    表  1  防护指标

    Table  1.   Protection indicator

    operation frequency/MHzinsert loss/dBmaximum residual current peak (400 A injected current peak 400 A)starting time
    30-100$ \leqslant $0.5 dB$ \leqslant $10 A$ \leqslant $10 ns
    下载: 导出CSV
  • [1] Giri D V, Hoad R, Sabath F. High-power electromagnetic effects on electronic systems[M]. London: Artech House, 2020: 20-30.
    [2] 周璧华, 陈彬, 石立华. 电磁脉冲及其防护工程[M]. 北京: 国防工业出版社, 2003.

    Zhou Bihua, Chen Bin, Shi Lihua. Electromagnetic pulse and its protection engineering[M]. Beijing: National Defense Industry Press, 2003
    [3] Backstrom M G, Lovstrand K G. Susceptibility of electronic systems to high-power microwaves: summary of test experience[J]. IEEE Transactions on Electromagnetic Compatibility, 2004, 46(3): 396-493. doi: 10.1109/TEMC.2004.831814
    [4] 马浪凯. 强电磁脉冲下传导防护器件瞬态响应特性研究[D]. 西安: 西安电子科技大学, 2018.

    Ma Langkai. Study on transient response characteristics of conductive protection device under strong electromagnetic pulse[D]. Xi’an: Xidian University, 2018
    [5] 张小威. 不同快脉冲下脉冲防护器器件响应特性与防护技术研究[D]. 西安: 西安电子科技大学, 2019.

    Zhang Xiaowei. Research on response characteristics and protection technology of pulse protector under different fast pulses[D]. Xi’an: Xidian University, 2019
    [6] 李亚南, 谭志良, 彭长振. 基于短波通信的射频前端电磁脉冲防护模块仿真与设计[J]. 电子学报, 2018, 46(6):1421-1427. (Li Ya’nan, Tan Zhiliang, Peng Changzhen. Simulation and design of RF front end electromagnetic protection module based on HF communication[J]. Acta Electronica Sinica, 2018, 46(6): 1421-1427 doi: 10.3969/j.issn.0372-2112.2018.06.022
    [7] 李亚南, 谭志良, 宋培姣. 射频前端强电磁脉冲防护模块设计[J]. 强激光与粒子束, 2018, 30:013204. (Li Ya’nan, Tan Zhiliang, Song Peijiao. Simulation and design of RF front end electromagnetic protection module[J]. High Power Laser and Particle Beams, 2018, 30: 013204
    [8] 王洋. 接收机前端低噪声放大器设计及其电磁脉冲防护研究[D]. 上海: 上海交通大学, 2011.

    Wang Yang. Design and electromagnetic pulse protection research of receiver front-end LNA[D]. Shanghai: Shanghai Jiaotong University, 2011
    [9] Mao C, Canavero F. System-level vulnerability assessment for IEMI: from fault tree analysis to Bayesian networks—part i: methodology framework[J]. IEEE Transactions on Electromagnetic Compatibility, 2016, 58(1): 180-187. doi: 10.1109/TEMC.2015.2484067
    [10] 张志华. 可靠性理论及工程应用[M]. 北京: 科学出版社, 2012.

    Zhang Zhihua. Reliability theory and engineering application[M]. Beijing: Science Press, 2012
    [11] Du C, Liu Z, Mao C, et al. An efficient method to statistical modeling of transient response for monopole antenna[C]//Europe EMC Conference. 2018.
    [12] IEC 61000-2-10-1998, Electromagnetic compatibility (EMC)—Part 2-10: Environment—description of HEMP environment conducted disturbance[S].
    [13] 樊昌信, 曹丽娜. 通信原理[M]. 北京: 国防工业出版社, 2016.

    Fan Changxin, Cao Lina. Principle of communication[M]. Beijing: National Defense Industry Press, 2016
    [14] 楼才义, 徐建良, 杨小牛. 软件无线电原理与应用[M]. 北京: 电子工业出版社, 2014.

    Lou Caiyi, Xu Jianliang, Yang Xiaoniu. Software-defined radio: principles and practice[M]. Beijing: Electronic Industry Press, 2014
    [15] Rao S M, Wilton D R, Glisson A W. Electromagnetic scattering by surfaces of arbitrary shape[J]. IEEE Transactions on Antenna and Propagation, 1982, 30(3): 409-418. doi: 10.1109/TAP.1982.1142818
    [16] GJB8848-2016. 系统电磁环境效应试验方法[S].

    GJB8848-2016. Test method of system electromagnetic environmental effect[S].
    [17] 谢霖燊, 吴伟, 朱湘琴. 分布式负载垂直极化有界波电磁脉冲模拟器外泄场的规律分析[J]. 强激光与粒子束, 2020, 32:055002. (Xie Linshen, Wu Wei, Zhu Xiangqin. Regularity analysis of leakage-field from vertically polarized bounded wave electromagnetic pulse simulator with distributed load[J]. High Power Laser and Particle Beams, 2020, 32: 055002
